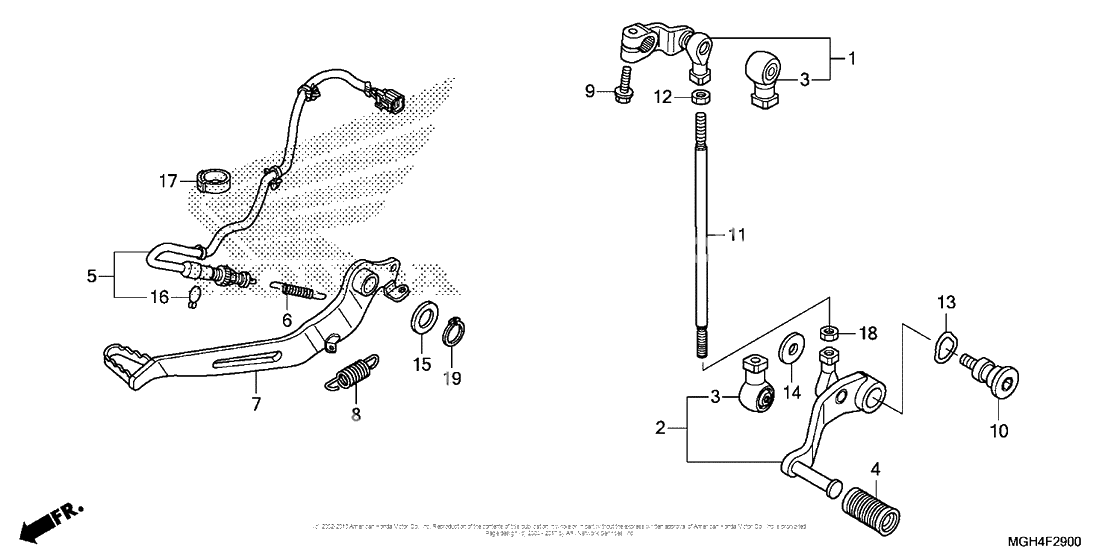

Педаль(Лапка)
Педаль(Лапка)
Arm, gearshift (Ref #1)
1
Part #24710-MGH-640
New Genuine Part (Ref #2)
2
Part #24720-MGH-640
Пыльник (Ref #3)
3
Part #24724-MBW-D21
Rubber, change pedal (Ref #4)
4
Part #24781-KR3-770
Switch, rr. stop (Ref #5)
5
Part #35350-MGH-642
Spring, stop switch (Ref #6)
6
Part #35357-MGH-641
Pedal, rr. brake (Ref #7)
7
Part #46510-MGH-640
Spring, brake pedal (Ref #8)
8
Part #46514-GCF-670
Болт (Ref #9)
9
Part #90010-ML0-720
Болт (Ref #10)
10
Part #90113-MCF-000
Bolt, tie rod (Ref #11)
11
Part #90165-MGH-640
Nut b, tie rod (Ref #12)
12
Part #90302-MGE-000
Шайба (Ref #13)
13
Part #90505-MBW-000
Washer a (Ref #14)
14
Part #90524-030-000
Шайба (Ref #15)
15
Part #90557-230-000
Clip, switch cover (Ref #16)
16
Part #90651-MGE-641
Clip, wire harness (Ref #17)
17
Part #90683-KJ2-003
Nut, hex, (6mm) (Ref #18)
18
Part #94002-060-400-S
Circlip, external, 15mm (Ref #19)
19
Part #9451115000
