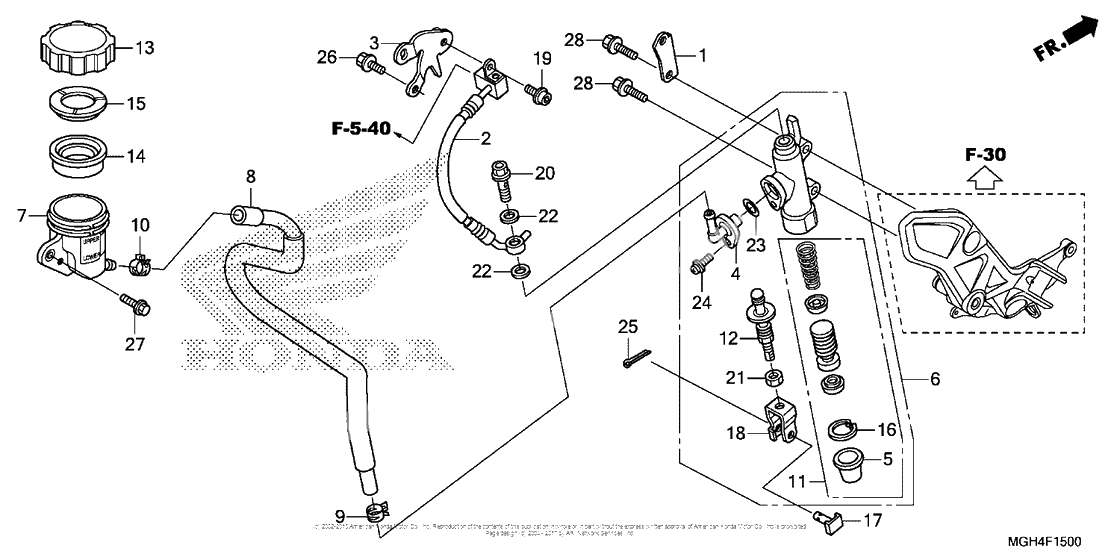

Задний тормозной цилиндр
Задний тормозной цилиндр
Stay, harness clip (Ref #1)
1
Part #32157-MGH-640
Hose a, rr. brake (Ref #2)
2
Part #43310-MGH-641
Stay, rr, brake hose (Ref #3)
3
Part #43325-MGE-000
Коннектор (Ref #4)
4
Part #43503-MER-D01
Ботинок (Ref #5)
5
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #6)
6
Part #43510-MGH-305
Стакан (Ref #7)
7
Part #43511-MGE-016
Hose, rr. (Ref #8)
8
Part #43512-MGH-641
CLAMP (Ref #9)
9
Part #43514-KS6-701
CLAMP (Ref #10)
10
Part #43514-MN9-006
PISTON SET (Ref #11)
11
Part #43520-MG9-315
Rod, push (Ref #12)
12
Part #43530-MGH-641
Колпак (Ref #13)
13
Part #45513-MEL-D21
DIAPHRAGM (Ref #14)
14
Part #45520-300-000
Пластина (Ref #15)
15
Part #45521-MJ6-006
Circlip (Ref #16)
16
Part #46182-MEL-D21
Pin, brake rod (Ref #17)
17
Part #46503-MAL-000
Joint, brake rod (Ref #18)
18
Part #46504-MAL-601
Bolt (6x12) (Ref #19)
19
Part #90009-MF5-000
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Nut, hex. (8mm) (Ref #21)
21
Part #90301-MEH-006
Шайба (Ref #22)
22
Part #90545-300-000
Прокладка (Ref #23)
23
Part #91212-422-006
Screw-washer (Ref #24)
24
Part #93893-040-120-7
PIN (Ref #25)
25
Part #94201-20120
BOLT (Ref #26)
26
Part #95701-060-120-7
BOLT (Ref #27)
27
Part #96001-060-160-0
Болт (Ref #28)
28
Part #96001-0602207
