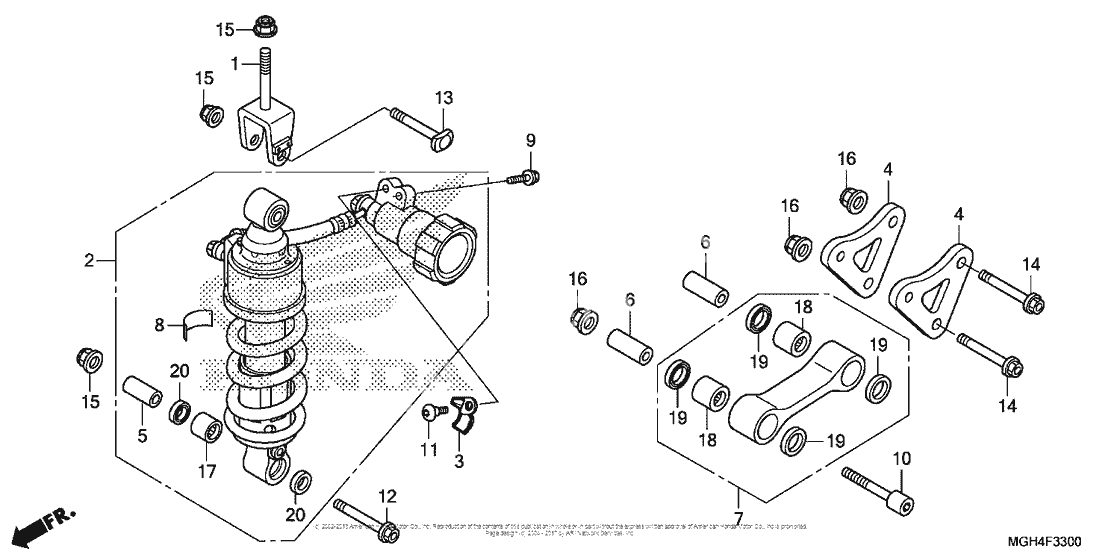

Задний амортизатор
Задний амортизатор
Bracket, rr, cushion (Ref #1)
1
Part #50230-MGE-000
Cushion assy., rr. (Ref #2)
2
Part #52400-MGH-305
Guard (Ref #3)
3
Part #52430-MGH-640
New Genuine Part (Ref #4)
4
Part #52461-MGH-640
COLLAR (Ref #5)
5
Part #52463-MAL-G00
Collar,cush arm (Ref #6)
6
Part #52463-MBT-D20
Rod sub-assy. (Ref #7)
7
Part #52475-MGH-640
Label, rr. (Ref #8)
8
Part #87516-MBL-610
BOLT (Ref #9)
9
Part #90102-KSV-J00
Bolt, socket (12x69) (Ref #10)
10
Part #90108-MGE-000
Bolt, special (6x15) (Ref #11)
11
Part #90114-MGE-D00
BOLT, FLANGE (10X64) (Ref #12)
12
Part #90121-MGH-640
Bolt (10x53,5) (Ref #13)
13
Part #90122-MGE-000
BOLT, FLANGE (12X66) (Ref #14)
14
Part #90123-MGH-640
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Bearing, needle, 17x24x20 (ntn) (Ref #17)
17
Part #91072-KT7-003
Bearing (20x26x20) (Ref #18)
18
Part #91072-MY1-005
DUST SEAL (Ref #19)
19
Part #91254-KS6-003
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #20)
20
Part #91262-KV3-831
