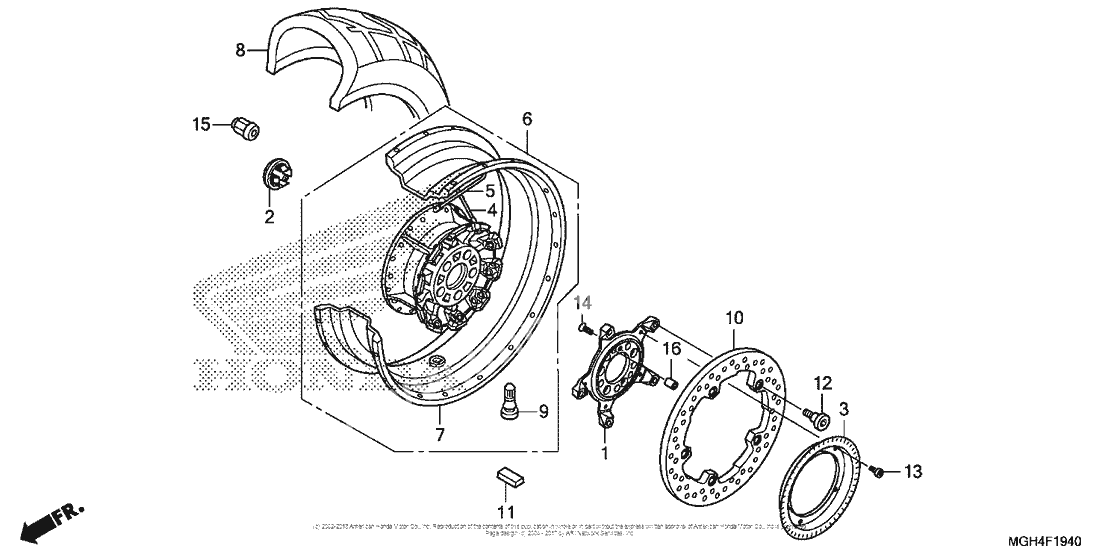

Заднее колесо
Заднее колесо
Flange (Ref #1)
1
Part #41441-MGH-640
Cap, rr. axle (Ref #2)
2
Part #42303-MFN-D00
Ring, rr. pulser (Ref #3)
3
Part #42515-MGH-641
Спица А, 173мм (Ref #4)
4
Part #42605-MGH-640
Спица В, 170мм (Ref #5)
5
Part #42606-MGH-640
Wheel sub-assy., rr. (Ref #6)
6
Part #42650-MGH-640
Rim, rr. wheel (Ref #7)
7
Part #42701-MGH-641
Tire, rr. (Ref #8)
8
Part #42711-MGH-643
Клапан, обод колеса (Ref #9)
9
Part #42753-ML7-003
Disk, rr, brake (Ref #10)
10
Part #43251-MGE-003
Weight, Balance (10G) (Toho Zink) (Ref #11)
11
Part #44721-TY2-N01
Weight, Balance (15G) (Toho Zink) (Ref #11)
11
Part #44727-TY2-N01
Weight, Balance (30G) (Toho Zink) (Ref #11)
11
Part #44723-TY2-N01
Weight, Balance (20G) (Toho Zink) (Ref #11)
11
Part #44722-TY2-N01
Bolt, disk (8x20) (Ref #12)
12
Part #90106-MGE-000
Bolt, torx (5x8) (Ref #13)
13
Part #90131-MGE-000
ДЕТАЛЬ (Ref #14)
14
Part #90132-MCA-000
Гайка (Ref #15)
15
Part #90381-S4L-003
Dowel pin (Ref #16)
16
Part #94303-10160
