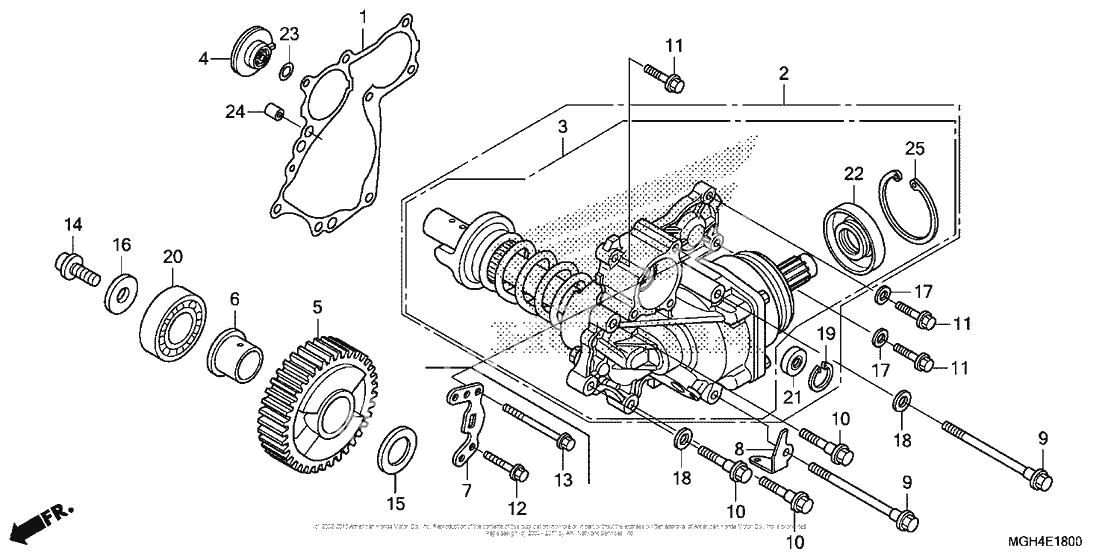

Side gear case
Side gear case
Gskt, side gear case (Ref #1)
1
Part #11663-MGE-003
Case assy,side ge (Ref #2)
2
Part #21100-MGE-700
Collar, oil guide (Ref #4)
4
Part #23218-MGE-010
Gear (37t) (Ref #5)
5
Part #23541-MGE-000
Collar (25x30x28,6) (Ref #6)
6
Part #23733-MGE-000
Stay, harness clip (Ref #8)
8
Part #32156-MGH-640
Болт (Ref #9)
9
Part #90005-MGE-010
Bolt, ubs (8x40) (Ref #10)
10
Part #90006-MGE-010
Болт (Ref #11)
11
Part #90016-GHB-680
Bolt, special (10mm) (Ref #14)
14
Part #90037-ME9-000
Шайба (Ref #15)
15
Part #90403-MGE-000
Шайба (Ref #16)
16
Part #90414-MGE-D00
Washer, sealing, 6mm (Ref #17)
17
Part #90441-706-000
Шайба (Ref #18)
18
Part #90442-028-000
Circlip (26mm) (Ref #19)
19
Part #90603-MGE-000
Bearing, ball (6305) (Ref #20)
20
Part #91005-MGE-003
Oil seal (8x25x8) (Ref #21)
21
Part #91204-MB0-013
Oil seal (28x66x8) (Ref #22)
22
Part #91205-MGE-003
Прокладка (Ref #23)
23
Part #91309-PJ7-010
Установочный штифт (Ref #24)
24
Part #94302-10120
Circlip (65mm) (Ref #25)
25
Part #9452065120
