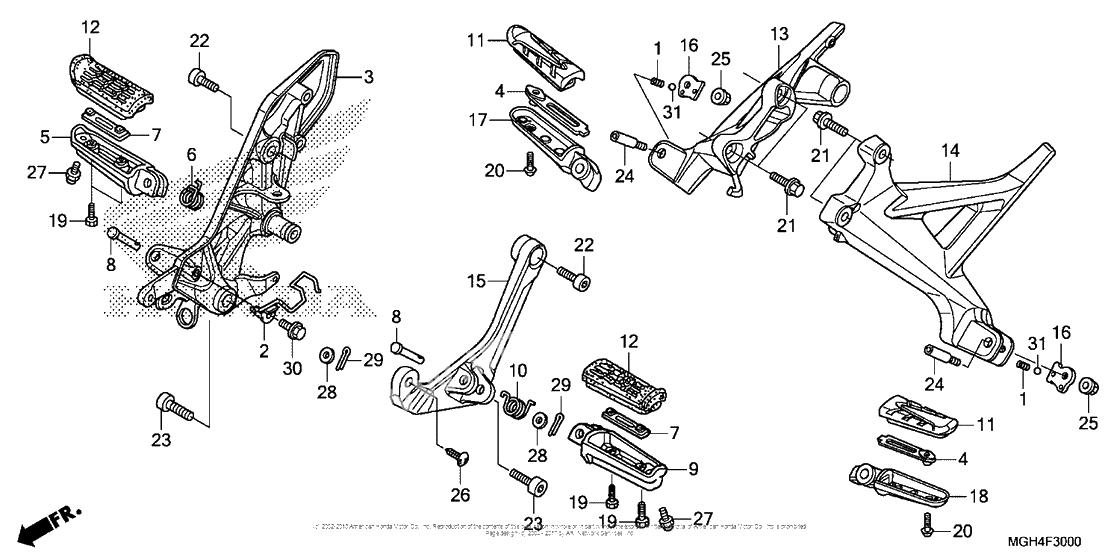

Подножки
Подножки
Пружина (Ref #1)
1
Part #28333-300-000
Guide, harness (Ref #2)
2
Part #32109-MGH-640
Holder, r. main step (Ref #3)
3
Part #50600-MGH-640
Plate, step setting (Ref #4)
4
Part #50609-MGE-000
Arm, r. step (Ref #5)
5
Part #50612-KYJ-305
Spring, r (Ref #6)
6
Part #50617-445-840
Plate, step setting (Ref #7)
7
Part #50619-MM5-000
Pin, step bar (Ref #8)
8
Part #50639-MFL-D20
Arm, l. step (Ref #9)
9
Part #50642-KYJ-305
Spring, l (Ref #10)
10
Part #50644-445-840
Rub, main step (c00) (Ref #11)
11
Part #50661-MGE-305
Rubber, step (Ref #12)
12
Part #50661-MV9-000
New Genuine Part (Ref #13)
13
Part #50671-MGH-N00
HOLDER, L. PILLION STEP (Ref #14)
14
Part #50681-MGH-N00
Holder, l. main step (Ref #15)
15
Part #50700-MGH-640
PLATE (Ref #16)
16
Part #50718-MGE-000
Arm, r. pillion step (Ref #17)
17
Part #50720-MGH-N01
Arm, l. pillion step (Ref #18)
18
Part #50730-MGH-N01
BOLT (Ref #19)
19
Part #90115-MV9-000
Bolt, special (5x14) (Ref #20)
20
Part #90118-MGE-000
BOLT, FLANGE (8X30) (Ref #21)
21
Part #90136-MGH-640
Bolt, socket (8x22) (Ref #22)
22
Part #90157-MGE-000
Bolt, socket (10x22) (Ref #23)
23
Part #90158-MGE-000
Bolt, special (6x16) (Ref #24)
24
Part #90167-MGE-010
Nut, u, 6mm (Ref #25)
25
Part #90301-473-003
Bolt, cap (8x10) (Ref #27)
27
Part #92501-08010-0B
Washer, flat (8mm) (Ref #28)
28
Part #9410208200
Pin,split,2.0 (Ref #29)
29
Part #94201-20152
Bolt, flange, 6x10 (Ref #30)
30
Part #96001-060-100-0
Ball (Ref #31)
31
Part #96211-08000
