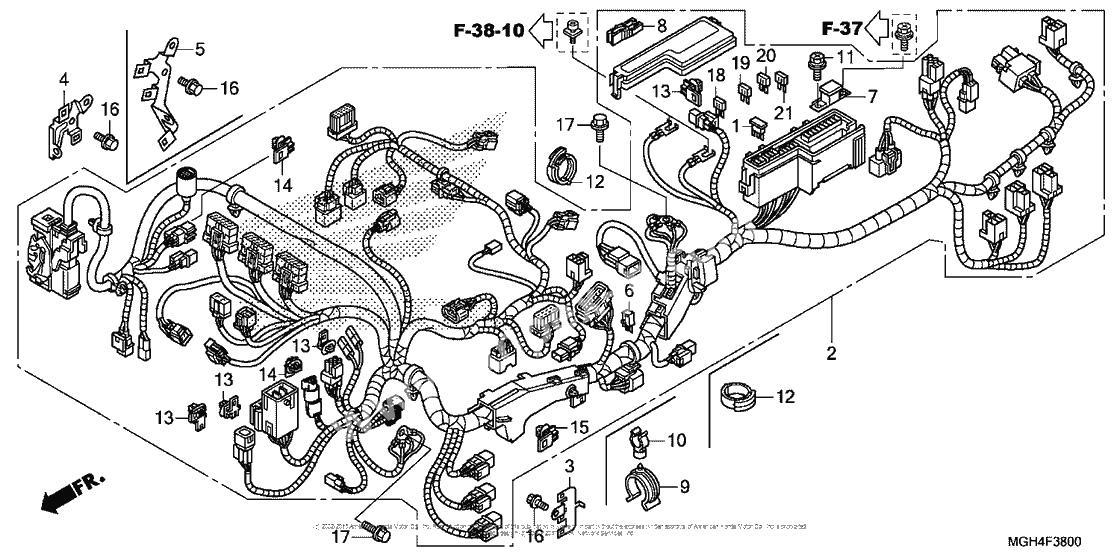

Электрооборудование
Электрооборудование
Cap & coil, ignition (Ref #1)
1
Part #30700-MGE-641
Rectifier, regulator (Ref #2)
2
Part #31600-MGE-641
Cover,reg rect (Ref #3)
3
Part #31601-MGE-642
PLATE (Ref #4)
4
Part #31604-MGE-000
Sub-harness, fr. (Ref #5)
5
Part #32103-MGH-A50
Sub-harness (Ref #6)
6
Part #32112-MGE-640
Датчик (Ref #7)
7
Part #35160-MGS-D31
Horn comp (low) (Ref #10)
10
Part #38120-MCE-951
New Genuine Part (Ref #11)
11
Part #38301-MGH-N01
Cushion, turn signal relay (Ref #12)
12
Part #38306-MGH-640
Relay (micro iso 4p) (Ref #13)
13
Part #38501-MCS-G01
Suspension, starter relay (tateishi) (Ref #14)
14
Part #38506-751-701
Holder,micro iso (Ref #15)
15
Part #38506-MBW-G91
Pgm-fi unit (Ref #16)
16
Part #38770-MGH-A51
COLLAR (Ref #17)
17
Part #50609-MCW-D00
Уплотнительная резинка (Ref #18)
18
Part #64535-MFJ-D00
Bolt, socket (5x8) (Ref #19)
19
Part #90101-MGE-640
Screw, pan (5x15) (Ref #20)
20
Part #90113-MCJ-000
BAND (Ref #21)
21
Part #90651-MA6-720
CLIP (Ref #22)
22
Part #91504-SD5-901
CLIP (Ref #23)
23
Part #91565-SEL-003
Bolt-washer (Ref #24)
24
Part #93401-060-200-7
Гайка (Ref #25)
25
Part #94001-060-700-S
BOLT (Ref #26)
26
Part #95701-060-250-0
Bolt, flange, 8x12 (Ref #27)
27
Part #95701-0801207
