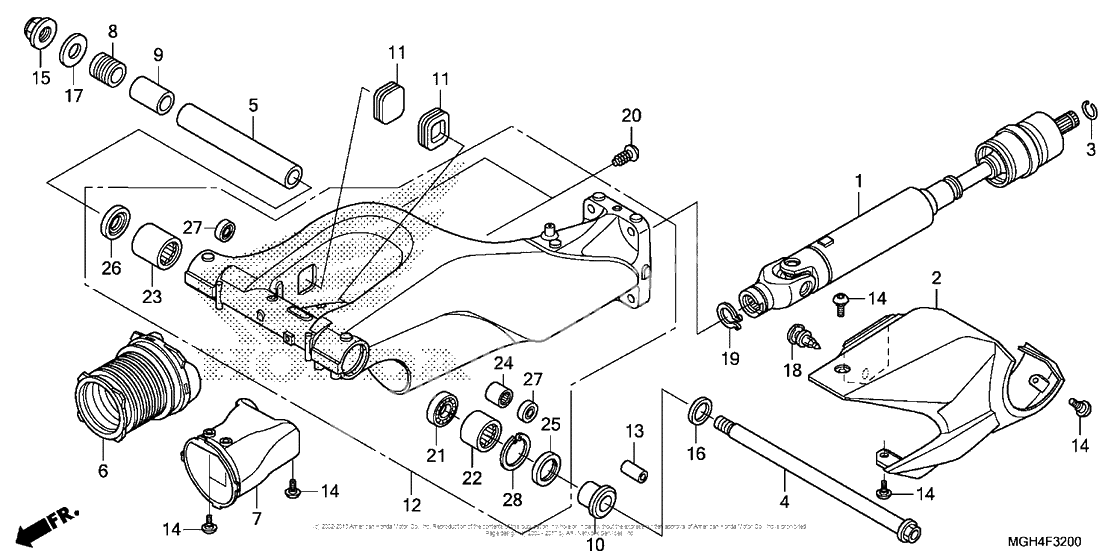

Задний рычаг (Маятник)
Задний рычаг (Маятник)
SHAFT ASSY,PROP (Ref #1)
1
Part #40200-MGE-023
Cover, final gear (Ref #2)
2
Part #41351-MGE-000
Кольцо (Ref #3)
3
Part #44319-SC2-003
Bolt, swingarm pivot (Ref #4)
4
Part #52101-MGE-000
Collar, swingarm (Ref #5)
5
Part #52102-MGE-000
Boot, joint (NA) (Ref #6)
6
Part #52104-MGE-000
Cvr, propeller shaft (Ref #7)
7
Part #52105-MGE-000
BOLT (Ref #8)
8
Part #52109-MGE-000
Collar, r (Ref #9)
9
Part #52143-MGE-000
Collar, r (Ref #10)
10
Part #52144-MFL-000
Grommet, swingarm (Ref #11)
11
Part #52175-MGE-000
Swingarm sub-assy. (Ref #12)
12
Part #52200-MGH-640
Collar,cush arm (Ref #13)
13
Part #52463-MBT-D20
Bolt, special (6x12) (Ref #14)
14
Part #90113-MGE-000
Nut, u (22mm) (Ref #15)
15
Part #90306-MFL-D31
Шайба (Ref #16)
16
Part #90501-MGE-000
Шайба (Ref #17)
17
Part #90502-MGE-000
Rivet, push pull (Ref #18)
18
Part #90652-MGE-003
Circlip (26mm) (Ref #19)
19
Part #90654-MGE-000
Plug, hole (Ref #20)
20
Part #90656-MGE-003
Bearing (6905) (Ref #21)
21
Part #91053-MCJ-003
Bearing (32x42x20) (Ref #22)
22
Part #91053-MCJ-751
Bearing (32x42x37) (Ref #23)
23
Part #91071-MCJ-003
Bearing (20x26x20) (Ref #24)
24
Part #91072-MY1-005
Dust seal (32x45x6) (Ref #25)
25
Part #91252-MCF-003
Dust seal (32x42x6) (Ref #26)
26
Part #91253-MCF-003
DUST SEAL (Ref #27)
27
Part #91254-KS6-003
Circlip (Ref #28)
28
Part #94520-45000
