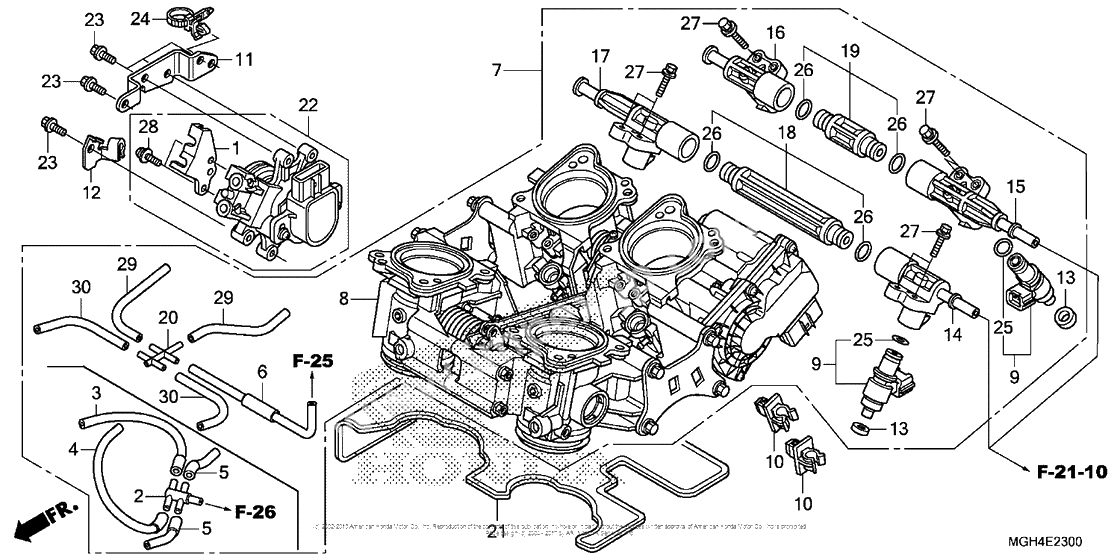

Дроссельная заслонка
Дроссельная заслонка
Stay, wire (Ref #1)
1
Part #16169-MFL-003
JOINT (Ref #2)
2
Part #16180-ME5-761
TUBE (Ref #3)
3
Part #16197-MCZ-771
TUBE (Ref #4)
4
Part #16197-MFJ-L01
Tube (3.5x50) (Ref #5)
5
Part #16197-MGE-771
Tube (3,5x190) (Ref #6)
6
Part #16198-MGE-003
Корпус (Ref #7)
7
Part #16400-MGE-773
Body assy., throttle (Ref #8)
8
Part #16402-MGE-771
Injector assy., fuel (Ref #9)
9
Part #16450-MFL-003
Clip, hose (d15,8) (Ref #10)
10
Part #16453-MGE-003
Stay, aps unit (Ref #11)
11
Part #16454-MGE-000
STAY (Ref #12)
12
Part #16455-MGE-000
Seal ring, injector (Ref #13)
13
Part #16472-MCW-000
Pipe, fuel (#1) (Ref #14)
14
Part #16610-MGE-003
Pipe, fuel (#2) (Ref #15)
15
Part #16620-MGE-003
Pipe, fuel (#3) (Ref #16)
16
Part #16630-MGE-003
Pipe, fuel (#4) (Ref #17)
17
Part #16640-MGE-003
Joint set, fr, fuel (Ref #18)
18
Part #16650-MGE-003
Joint set, rr, fuel (Ref #19)
19
Part #16660-MGE-003
Joint (5way) (Ref #20)
20
Part #17201-MCJ-003
Sensor unit (Ref #22)
22
Part #37971-MGE-672
Болт (Ref #23)
23
Part #90012-GHB-610
Ременная лента кабель (Ref #24)
24
Part #90672-SB2-003
Прокладка (Ref #25)
25
Part #91301-P7A-004
Прокладка (Ref #26)
26
Part #91301-PLC-000
Bolt-washer (5x25) (Ref #27)
27
Part #93403-050-250-0
Screw-washer (5x12) (Ref #28)
28
Part #93892-050-120-0
Bulk hose (3.5x1000) (Ref #29)
29
Part #95005-350-0120M
