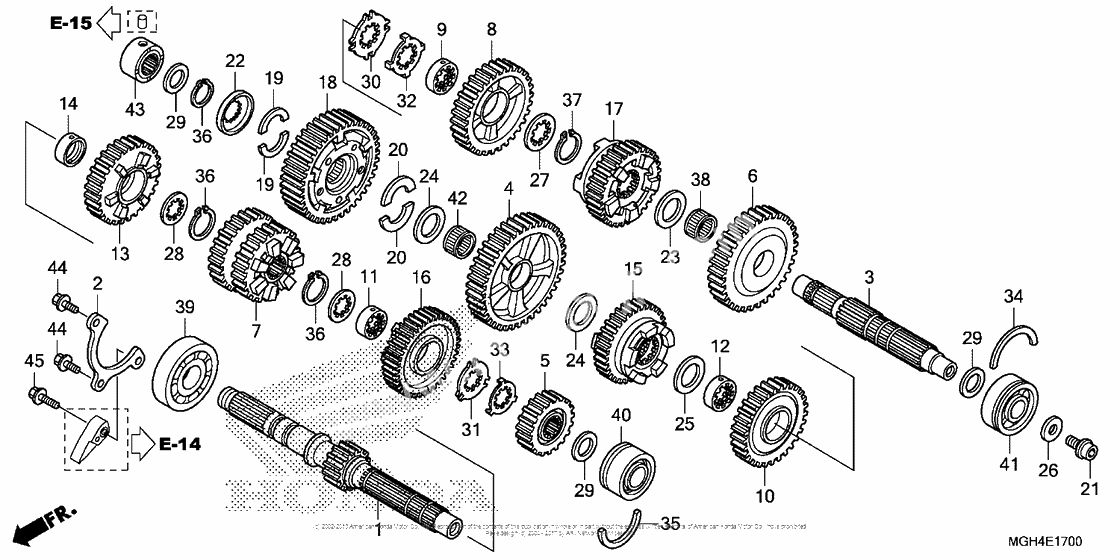

Трансмиссия
Трансмиссия
Mainshaft (15t) (Ref #1)
1
Part #23210-MGE-010
PLATE (Ref #2)
2
Part #23213-MGE-000
Countershaft (Ref #3)
3
Part #23221-MGE-010
Gear (39t) (Ref #4)
4
Part #23421-MGE-010
Gear (20t) (Ref #5)
5
Part #23431-MGE-700
Gear (32t) (Ref #6)
6
Part #23441-MGE-700
GEAR (23T/26T) (Ref #7)
7
Part #23451-MGH-640
Gear (29t) (Ref #8)
8
Part #23461-MGH-640
Colr, spline (30x12) (Ref #9)
9
Part #23462-MGE-000
Gear (28t) (Ref #10)
10
Part #23481-MGH-640
Colr, spline (28x16) (Ref #11)
11
Part #23482-MCJ-000
Collar (30x33x12) (Ref #12)
12
Part #23482-MGE-000
Gear (26t) (Ref #13)
13
Part #23491-MGH-640
Collar (28x13) (Ref #14)
14
Part #23495-MM5-000
Gear (25t) (Ref #15)
15
Part #23501-MGH-640
Gear (39t) (Ref #16)
16
Part #23511-MGH-640
Gear (35t) (Ref #17)
17
Part #23521-MGH-640
Gear (39t) (Ref #18)
18
Part #23530-MGH-640
Cotter, countershaft (Ref #19)
19
Part #23545-MGE-000
Cotter b (Ref #20)
20
Part #23546-MGE-010
Bolt, special (10mm) (Ref #21)
21
Part #90037-ME9-000
RETAINER (Ref #22)
22
Part #90402-MGE-010
Шайба (Ref #23)
23
Part #90407-415-000
Шайба (Ref #24)
24
Part #90409-MGE-000
Шайба (Ref #25)
25
Part #90410-MGE-000
Шайба (Ref #26)
26
Part #90412-MGE-000
Шайба (Ref #27)
27
Part #90452-MAT-000
Шайба (Ref #28)
28
Part #90452-MR7-000
Washer b (22mm) (Ref #29)
29
Part #90455-ML7-000
Шайба (Ref #30)
30
Part #90463-MAT-000
Шайба (Ref #31)
31
Part #90463-MR7-000
ШАЙБА СТОПОРНАЯ (Ref #32)
32
Part #90464-MAT-000
Washer, lock (28mm) (Ref #33)
33
Part #90464-MR7-000
Ring (56mm) (Ref #34)
34
Part #90601-MA6-000
Set-ring (48mm) (Ref #35)
35
Part #90602-MGE-000
Circlip (28mm) (Ref #36)
36
Part #90603-MN4-000
Кольцо стопорное (Ref #37)
37
Part #90604-MM5-000
Bearing (26x30x13) (Ref #38)
38
Part #91001-MCH-003
Bearing (28x76x18) (Ref #39)
39
Part #91001-MGE-003
Bearing (5204s) (Ref #40)
40
Part #91002-MGE-003
Bearing (22x56x21,5) (Ref #41)
41
Part #91003-MGE-003
Bearing (30x35x13) (Ref #42)
42
Part #91006-MGE-003
Brg,needle 22x38x (Ref #43)
43
Part #91025-MBT-F21
BOLT (Ref #44)
44
Part #95701-060-200-0
Bolt, flange, 6x28 (Ref #45)
45
Part #95801-0602800
