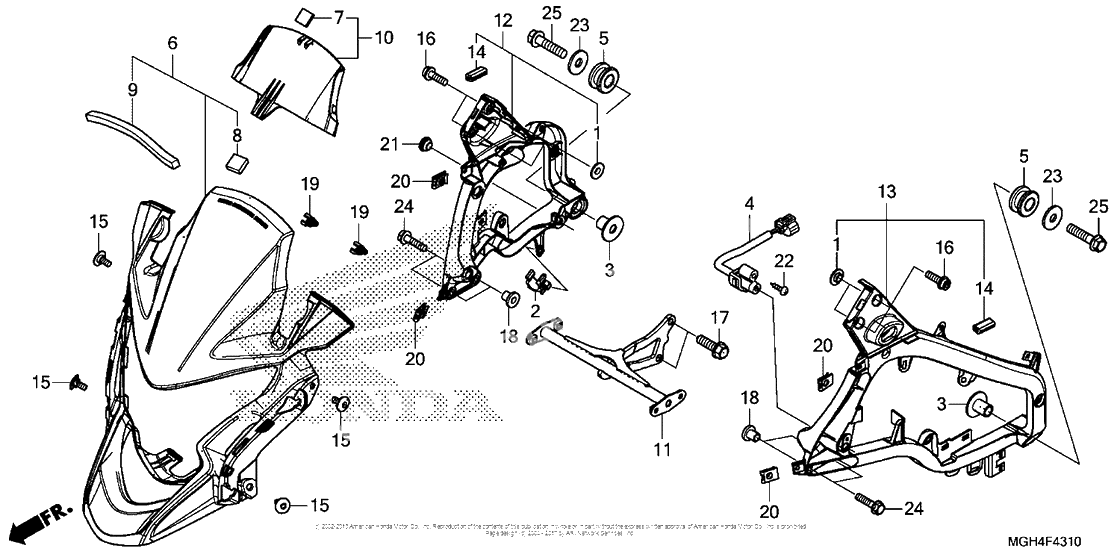

Передний обтекатель
Передний обтекатель
COLLAR (Ref #1)
1
Part #11385-MJF-A00
Clip, tube (Ref #2)
2
Part #16731-ZE2-003
Collar, rr. (8.5x15) (Ref #3)
3
Part #18327-KAE-000
Sensor, temperature (Ref #4)
4
Part #37880-MGH-641
Rubber,step mt. (Ref #5)
5
Part #50623-KFB-000
Cowl (upper) (Ref #6)
6
Part #64160-MGH-H20
Fastener b, dual lock (20x20) (Ref #7)
7
Part #64165-MGH-640
Fastener b (20x20) (Ref #8)
8
Part #64165-MJF-A30
MAT, COWL (UPPER) (Ref #9)
9
Part #64167-MGH-640
VISOR (INNER) (Ref #10)
10
Part #64170-MGH-H20
Stay, cowl (upper) (Ref #11)
11
Part #64500-MGH-640
Stay, r. (upper) (Ref #12)
12
Part #64600-MGH-H20
Stay, l. (upper) (Ref #13)
13
Part #64650-MGH-H20
Protector, rubber (Ref #14)
14
Part #77212-MFJ-D00
Шайба (Ref #15)
15
Part #90106-MBY-000
Bolt (6x20) (Ref #16)
16
Part #90116-MGH-H20
Болт (Ref #17)
17
Part #90120-MEE-000
Collar, fuel tank (Ref #18)
18
Part #90509-750-000
CLIP (Ref #19)
19
Part #90666-SDA-A01
Nut, clip (5mm) (Ref #20)
20
Part #90677-KAN-961
PLUG (Ref #21)
21
Part #90680-692-000
Болт (Ref #22)
22
Part #93913-24280
Washer, plain, 8mm (Ref #23)
23
Part #9410308000
Bolt, flange, 6x25 (Ref #24)
24
Part #96300-0602500
Болт (Ref #25)
25
Part #96300-0803500
