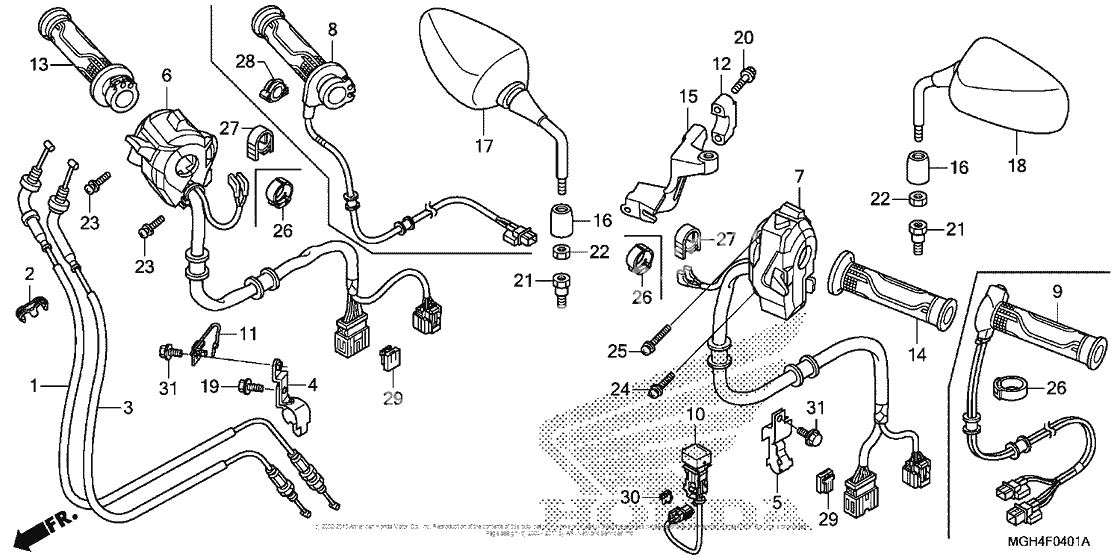

Switch + Cable + Mirror (2)
Switch + Cable + Mirror (2)
Cable a, throttle (Ref #1)
1
Part #17910-MGH-D21
CLIP (Ref #2)
2
Part #17915-MET-641
Cable b, throttle (Ref #3)
3
Part #17920-MGH-D21
Clamp, r. wire (Ref #4)
4
Part #35107-MGH-640
Clamp, l. wire (Ref #5)
5
Part #35108-MGH-640
SWITCH ASSY. (Ref #6)
6
Part #35130-MGH-H31
SWITCH ASSY. (Ref #7)
7
Part #35200-MGH-H31
SW, TORQUE CONTROL (Ref #10)
10
Part #38640-MGH-H21
Guide (Ref #11)
11
Part #50161-MGH-D20
New Genuine Part (Ref #12)
12
Part #53131-KTA-910
Зажим дросселя (Ref #13)
13
Part #53140-MGE-305
Рукоятка (Ref #14)
14
Part #53166-MGE-305
HOLDER, L. MIRROR (Ref #15)
15
Part #53192-MGH-D20
Cover, lock nut (Ref #16)
16
Part #88130-MGH-640
New Genuine Part (Ref #17)
17
Part #88210-MGH-640
Mirror, l. (Ref #18)
18
Part #88220-MGH-D20
BOLT, FLANGE (6X12) (Ref #19)
19
Part #90013-GHB-610
BOLT, FLANGE (6X25) (Ref #20)
20
Part #90013-GHB-670
Bolt, adapter (10mm) (Ref #21)
21
Part #90105-MGH-640
NUT A, HEX. (12MM) (Ref #22)
22
Part #90301-MGH-640
Screw-washer (5x20) (Ref #23)
23
Part #90507-MGE-640
Screw-washer (5x25) (Ref #24)
24
Part #90508-MGE-D00
Screw-washer (5x30) (Ref #25)
25
Part #90509-MGE-D00
CLIP, (Ref #27)
27
Part #90683-ZX2-003
HOLDER (Ref #29)
29
Part #91554-SM4-003
CLIP (Ref #30)
30
Part #91565-S0X-003
BOLT (Ref #31)
31
Part #96001-060-100-7
