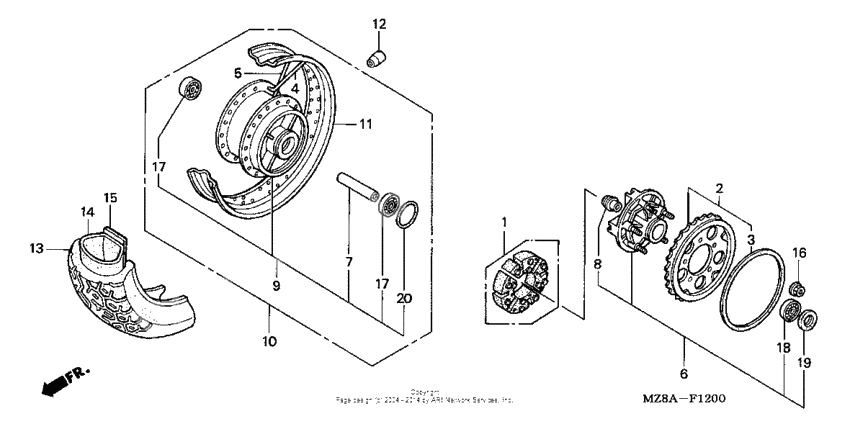

Rear wheel
Rear wheel
Damper set, wheel (Ref #1)
1
Part #06410-MY9-860
Звезда распределительного вала впуск (Ref #2)
2
Part #41205-MZ8-H00
Arrester, noise (Ref #3)
3
Part #41212-MA6-000
Spoke set a, rr. (Ref #4)
4
Part #42612-MR1-405
Spoke set b, rr. (Ref #5)
5
Part #42613-MR1-405
Flange sub-assy. (Ref #6)
6
Part #42615-MY9-791
Collar, rr. (Ref #7)
7
Part #42620-MR1-000
Collar b, rr. (Ref #8)
8
Part #42625-KT8-000
Hub sub-assy., rr. (Ref #9)
9
Part #42635-MBS-000
Wheel set, rr. (Ref #10)
10
Part #42650-MZ8-315
Rim, rr. wheel (Ref #11)
11
Part #42701-MR1-782
Грузик (Ref #12)
12
Part #42705-MEG-003
Грузик (Ref #12)
12
Part #42704-MEG-003
Tire, rr. (Ref #13)
13
Part #42711-MBA-024
Tube (170/80-15) (Ref #14)
14
Part #42712-MR1-672
Заслонка (Ref #15)
15
Part #42713-MR1-672
Nut, u, 10mm (Ref #16)
16
Part #90304-GE8-003
Bearing (6303uu) (Ref #17)
17
Part #91051-KS4-003
Bearing (6303uu) (Ref #17)
17
Part #91051-KS4-003
Bearing (6303uu) (Ref #17)
17
Part #91051-KS4-003
Bearing (6303uu) (Ref #17)
17
Part #91051-KS4-003
Bearing (6204u) (Ref #18)
18
Part #96140-620-401-0
Oil seal (28x47.2x7) (Ref #19)
19
Part #91252-MC4-013
O-ring (61x2) (Ref #20)
20
Part #91302-MA6-003
