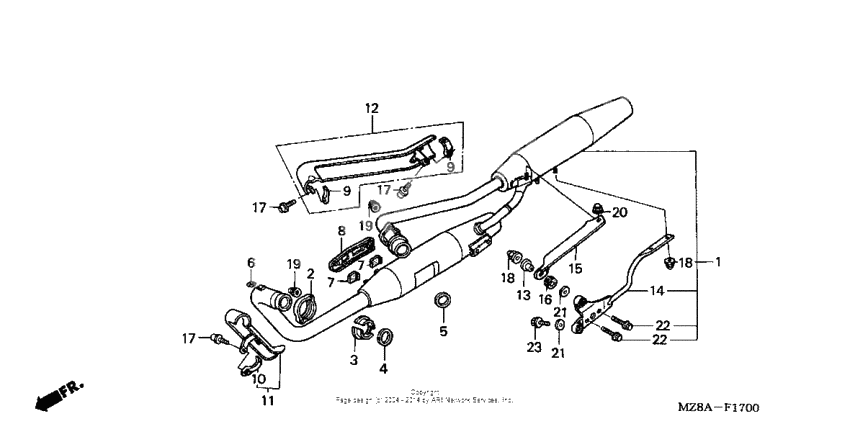

Muffler
Muffler
Muffler assy., ex. (Ref #1)
1
Part #18100-MZ8-L01
Joint, fr. ex. pipe (Ref #2)
2
Part #18231-MR1-000
Collar,exh pipe j (Ref #3)
3
Part #18233-MR1-010
Gasket, ex. pipe (Ref #4)
4
Part #18291-MM5-860
Gasket, ex. pipe (Ref #5)
5
Part #18291-MN4-920
RUBBER (Ref #6)
6
Part #18293-ME9-000
Rubber, protector (Ref #7)
7
Part #18293-MN0-000
Крышка глушителя (Ref #8)
8
Part #18315-MR1-000
Band, ex. pipe cover (Ref #9)
9
Part #18376-MR1-000
Band, ex. pipe cover (Ref #9)
9
Part #18376-MR1-000
Band, ex. pipe cover (Ref #9)
9
Part #18376-MR1-000
Band, ex. pipe cover (Ref #9)
9
Part #18376-MR1-000
Band, fr. cover (Ref #10)
10
Part #18377-MR1-000
Cover, fr. ex. pipe (Ref #11)
11
Part #18415-MR1-003
Cover, rr. ex. pipe (Ref #12)
12
Part #18418-MR1-003
Collar (8mm) (Ref #13)
13
Part #18422-MR1-000
Bracket, muffler (Ref #14)
14
Part #18455-MZ8-B00
Bracket, muffler (Ref #15)
15
Part #18456-MR1-003
Grommet, reserve tank (Ref #16)
16
Part #19111-MF5-000
Nut (8mm) (Ref #18)
18
Part #90161-MM8-000
Nut (8mm) (Ref #18)
18
Part #90161-MM8-000
Nut (8mm) (Ref #18)
18
Part #90161-MM8-000
Nut (8mm) (Ref #18)
18
Part #90161-MM8-000
Nut, cap (8mm) (Ref #19)
19
Part #90304-ME1-670
Nut, cap (8mm) (Ref #19)
19
Part #90304-ME1-670
Nut, cap (8mm) (Ref #19)
19
Part #90304-ME1-670
Nut, cap (8mm) (Ref #19)
19
Part #90304-ME1-670
Гайка (Ref #20)
20
Part #90322-S10-003
Шайба (Ref #21)
21
Part #94103-08700
Шайба (Ref #21)
21
Part #94103-08700
Шайба (Ref #21)
21
Part #94103-08700
Шайба (Ref #21)
21
Part #94103-08700
Bolt, flange, 8x16 (Ref #22)
22
Part #95701-0801600
Bolt, flange, 8x16 (Ref #22)
22
Part #95701-0801600
Bolt, flange, 8x16 (Ref #22)
22
Part #95701-0801600
Bolt, flange, 8x16 (Ref #22)
22
Part #95701-0801600
Болт (Ref #23)
23
Part #95701-0803207
