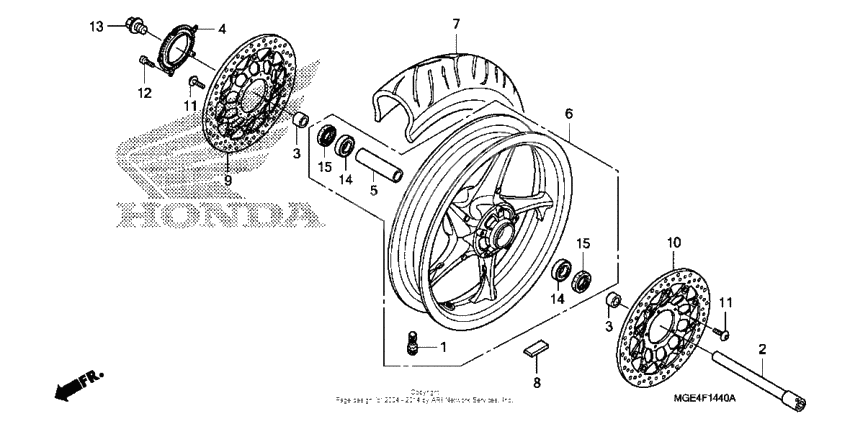

Front wheel
Front wheel
Клапан, обод колеса (Ref #1)
1
Part #42753-ML7-003
Клапан, обод колеса (Ref #1)
1
Part #42753-ML7-004
Axle, fr. wheel (Ref #2)
2
Part #44301-MFL-000
Colr, fr, wheel side (Ref #3)
3
Part #44312-MGE-000
Colr, fr, wheel side (Ref #3)
3
Part #44312-MGE-000
Colr, fr, wheel side (Ref #3)
3
Part #44312-MGE-000
Colr, fr, wheel side (Ref #3)
3
Part #44312-MGE-000
Ring, fr, pulser (Ref #4)
4
Part #44515-MGE-000
Collar, fr (Ref #5)
5
Part #44620-MGE-000
Wheel sub, fr, (c00) (Ref #6)
6
Part #44650-MGE-315
Wheel sub-assy., fr. (Ref #6)
6
Part #44650-MGE-306
Tire (120/70zr17) (Ref #7)
7
Part #44711-MGE-004
Tire (120/70zr17) (Ref #7)
7
Part #44711-MGE-003
Грузик (Ref #8)
8
Part #44729-SEA-N02
Грузик (Ref #8)
8
Part #44724-SEA-N02
Грузик (Ref #8)
8
Part #44728-SEA-N02
Грузик (Ref #8)
8
Part #44727-SEA-N02
Грузик (Ref #8)
8
Part #44726-SEA-N02
Грузик (Ref #8)
8
Part #44723-SEA-N02
Грузик (Ref #8)
8
Part #44722-SEA-N02
Грузик (Ref #8)
8
Part #44721-SEA-N02
Disk, r, fr, brake (Ref #9)
9
Part #45120-MGE-003
Disk, l, fr, brake (Ref #10)
10
Part #45220-MGE-003
Bolt (6x17) (Ref #11)
11
Part #90106-MFL-D20
Bolt (6x17) (Ref #11)
11
Part #90106-MFL-D20
Bolt (6x17) (Ref #11)
11
Part #90106-MFL-D20
Bolt (6x17) (Ref #11)
11
Part #90106-MFL-D20
Bolt, torx (5x10) (Ref #12)
12
Part #90131-KFK-630
Bolt, fr. axle (Ref #13)
13
Part #90306-MFL-010
Bearing (6205uu) (Ref #14)
14
Part #91053-MCS-G01
Bearing (6205uu) (Ref #14)
14
Part #91053-MCS-G01
Bearing (6205uu) (Ref #14)
14
Part #91053-MCS-G01
Bearing (6205uu) (Ref #14)
14
Part #91053-MCS-G01
Dust seal (34x52x7) (Ref #15)
15
Part #91252-MGE-003
Dust seal (34x52x7) (Ref #15)
15
Part #91252-MGE-003
Dust seal (34x52x7) (Ref #15)
15
Part #91252-MGE-003
Dust seal (34x52x7) (Ref #15)
15
Part #91252-MGE-003
