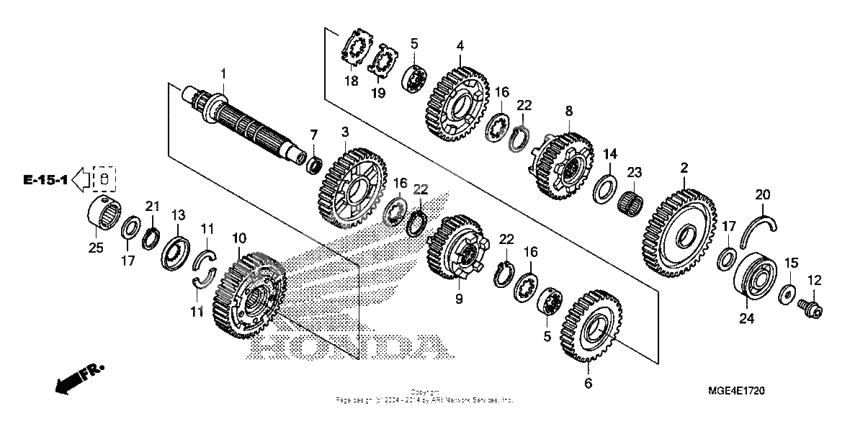

Transmission (countershaft)
Transmission (countershaft)
Countershaft (Ref #1)
1
Part #23221-MGE-D00
New Genuine Part (Ref #2)
2
Part #23421-MGE-J00
Gear (35t) (Ref #3)
3
Part #23441-MGE-D50
Gear (33t) (Ref #4)
4
Part #23461-MGE-D50
Colr, spline (30x11) (Ref #5)
5
Part #23462-MAT-000
Colr, spline (30x11) (Ref #5)
5
Part #23462-MAT-000
Colr, spline (30x11) (Ref #5)
5
Part #23462-MAT-000
Colr, spline (30x11) (Ref #5)
5
Part #23462-MAT-000
Gear (32t) (Ref #6)
6
Part #23481-MGE-D50
Collar (30x33x12.8) (Ref #7)
7
Part #23493-MGE-D00
Gear (32t) (Ref #8)
8
Part #23501-MGE-D00
Gear (31t) (Ref #9)
9
Part #23521-MGE-D00
Gear (41t) (Ref #10)
10
Part #23530-MGH-D20
Cotter, countershaft (Ref #11)
11
Part #23545-MGE-000
Cotter, countershaft (Ref #11)
11
Part #23545-MGE-000
Cotter, countershaft (Ref #11)
11
Part #23545-MGE-000
Cotter, countershaft (Ref #11)
11
Part #23545-MGE-000
Bolt, special (10mm) (Ref #12)
12
Part #90037-ME9-000
RETAINER (Ref #13)
13
Part #90402-MGE-010
Шайба (Ref #14)
14
Part #90407-415-000
Шайба (Ref #15)
15
Part #90412-MGE-000
Washer b (22mm) (Ref #17)
17
Part #90455-ML7-000
Washer b (22mm) (Ref #17)
17
Part #90455-ML7-000
Washer b (22mm) (Ref #17)
17
Part #90455-ML7-000
Washer b (22mm) (Ref #17)
17
Part #90455-ML7-000
Шайба (Ref #18)
18
Part #90463-MAT-000
ШАЙБА СТОПОРНАЯ (Ref #19)
19
Part #90464-MAT-000
Ring (56mm) (Ref #20)
20
Part #90601-MA6-000
Circlip (28mm) (Ref #21)
21
Part #90603-MN4-000
Circlip (28mm) (Ref #21)
21
Part #90602-MM5-000
Bearing (26x30x13) (Ref #23)
23
Part #91001-MCH-003
Bearing (22x56x21,5) (Ref #24)
24
Part #91003-MGE-003
Brg,needle 22x38x (Ref #25)
25
Part #91025-MBT-F21
