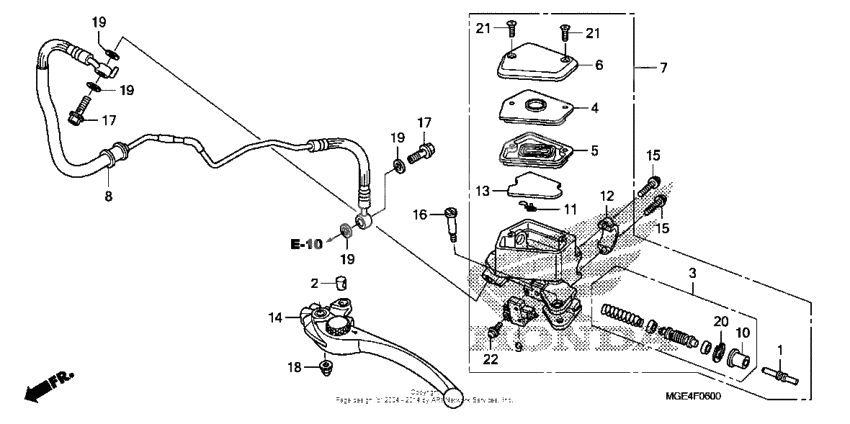

Главный цилиндр сцепления
Главный цилиндр сцепления
Штанга (Ref #1)
1
Part #22884-MAT-E01
Втулка (Ref #2)
2
Part #22885-MB0-006
PISTON SET (Ref #3)
3
Part #22886-MAT-E01
Пластина (Ref #4)
4
Part #22887-MGE-006
DIAPHRAGM (Ref #5)
5
Part #22888-MGE-006
Cap, master cylinder (Ref #6)
6
Part #22889-MGE-006
M/cyl sub-assy (c00) (Ref #7)
7
Part #22890-MGE-305
Pipe, clutch (Ref #8)
8
Part #22900-MGE-003
Switch assy., clutch (Ref #9)
9
Part #35330-MB0-003
Ботинок (Ref #10)
10
Part #45504-MAT-E01
PROTECTOR (Ref #11)
11
Part #45512-MA6-006
HOLDER (Ref #12)
12
Part #45517-166-006
Float, fr, (Ref #13)
13
Part #45523-MGE-006
Lever, l. handle (Ref #14)
14
Part #53180-MEJ-305
Bolt, flange, 6x22 (Ref #15)
15
Part #96001-0602200
Bolt, flange, 6x22 (Ref #15)
15
Part #96001-0602200
Bolt, flange, 6x22 (Ref #15)
15
Part #96001-0602200
Bolt, flange, 6x22 (Ref #15)
15
Part #96001-0602200
Bolt, r (Ref #16)
16
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Nut, cap, 6mm (Ref #18)
18
Part #90201-415-000
Circlip (Ref #20)
20
Part #90651-MA5-671
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Screw-washer (Ref #22)
22
Part #93893-040-120-7
