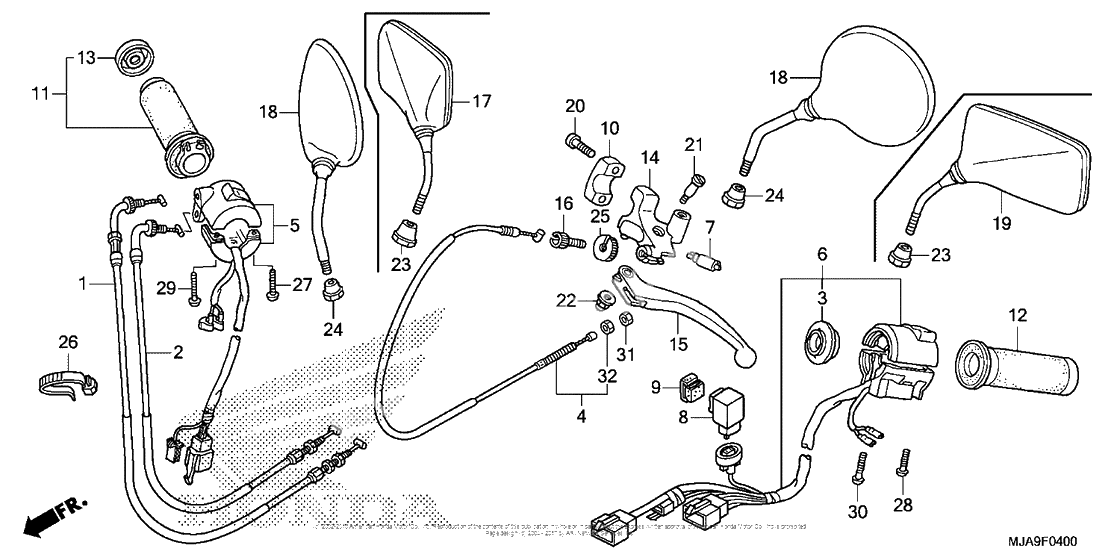

Ручка руля & Пульт управления рулевой & Тросики
Ручка руля & Пульт управления рулевой & Тросики
Cable comp a,thro (Ref #1)
1
Part #17910-MFE-A40
Cable comp b,thro (Ref #2)
2
Part #17920-MFE-A40
Адаптер (Ref #3)
3
Part #17962-MFE-A40
Тросик сцепления (Ref #4)
4
Part #22870-MFE-A40
Switch, engine stop (Ref #5)
5
Part #35130-MFE-A41
Switch, turn signal (Ref #6)
6
Part #35200-MFE-A41
Switch, fr. lever (Ref #7)
7
Part #35330-413-003
Relay, turn signal (Ref #8)
8
Part #38301-MEG-000
Suspension (Ref #9)
9
Part #38306-GE7-000
HOLDER (Ref #10)
10
Part #45517-MAV-751
Grip, r. handle (Ref #11)
11
Part #53145-MFE-305
Grip, l. handle (Ref #12)
12
Part #53166-MFE-305
Cap, r, grip end (Ref #13)
13
Part #53167-MFE-A40
Brkt, handle lever (Ref #14)
14
Part #53172-MBA-000
Lever, l. handle (Ref #15)
15
Part #53178-MAV-305
BOLT (Ref #16)
16
Part #53192-349-690
Mirror, l, back (Ref #17)
17
Part #88220-MFY-305
Bolt, socket (6x22) (Ref #20)
20
Part #90101-MCL-000
Болт (Ref #21)
21
Part #90113-438-000
Nut, cap, 6mm (Ref #22)
22
Part #90201-415-000
Nut, lock (Ref #23)
23
Part #90314-375-000
Nut, fixing (Ref #25)
25
Part #90321-KT7-760
BAND (Ref #26)
26
Part #90620-SB2-003
Болт (Ref #27)
27
Part #93500-050-200-A
Screw, pan, 5x22 (Ref #28)
28
Part #93500-050220A
Болт (Ref #29)
29
Part #93500-050-250-A
Screw, pan, 5x32 (Ref #30)
30
Part #93500-050320A
Nut, hex. (8mm) (Ref #31)
31
Part #94002-080700S
Nut, hex. (8mm) (Ref #32)
32
Part #94030-08070
