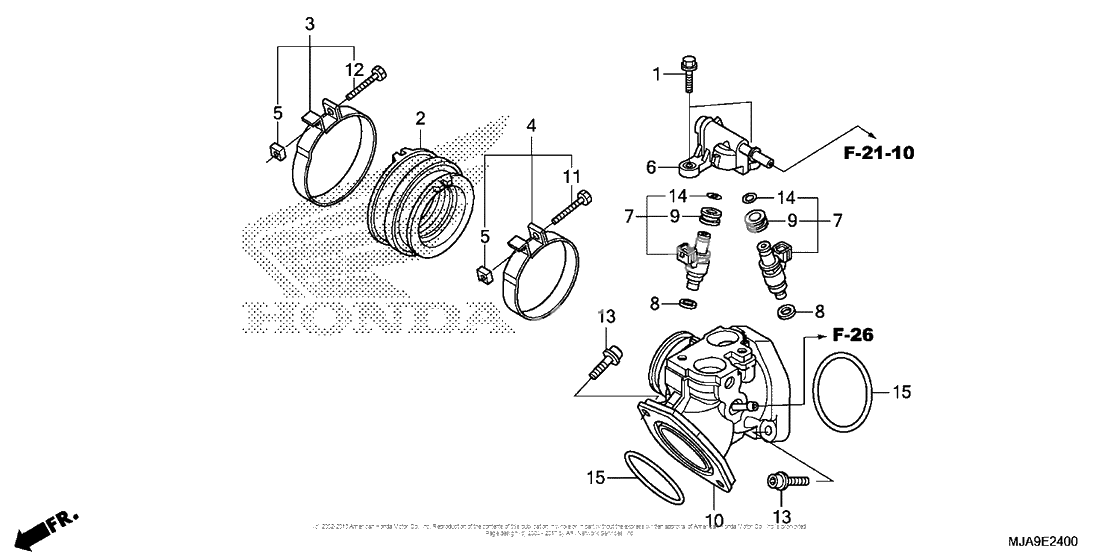

Inlet manifold
Inlet manifold
Болт (Ref #1)
1
Part #16080-KPH-701
Изолятор (Ref #2)
2
Part #16211-MFE-640
Band, insulator (Ref #3)
3
Part #16217-MBW-J20
Band, insulator (Ref #4)
4
Part #16217-MEG-000
Nut, square (5mm) (Ref #5)
5
Part #16222-MV4-300
Cap, Injector (Ref #6)
6
Part #16422-MFE-640
Injector assy,, fuel (Ref #7)
7
Part #16450-MFE-641
Seal ring, injector (Ref #8)
8
Part #16472-MCW-000
Cushion ring (Ref #9)
9
Part #16473-P7A-004
Manifold, inlet (Ref #10)
10
Part #17110-MFE-640
Bolt (5x32) (Ref #11)
11
Part #90005-MM4-000
Bolt (5x28) (Ref #12)
12
Part #90023-MM5-000
Bolt, socket (6x22) (Ref #13)
13
Part #90091-MM5-640
Прокладка (Ref #14)
14
Part #91301-P7A-004
Прокладка (Ref #15)
15
Part #91352-MG2-792
