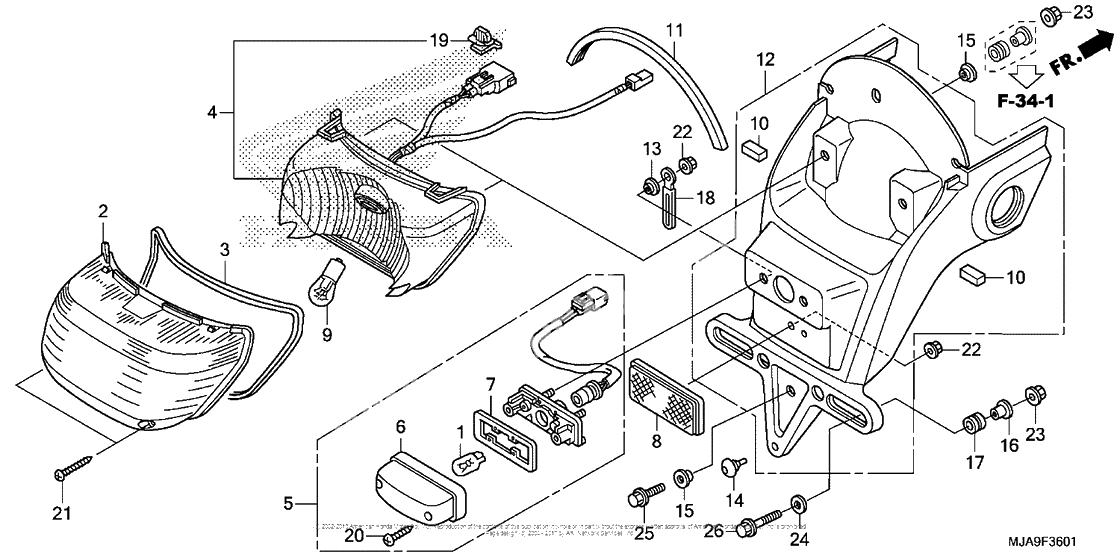

Taillight (2)
Taillight (2)
Bulb (Ref #1)
1
Part #33301-SA0-741
Lens, taillight (Ref #2)
2
Part #33702-MFE-305
Gasket, taillight (Ref #3)
3
Part #33703-MFE-671
Base, taillight (Ref #4)
4
Part #33707-MFE-671
Light assy, (12v 5w) (Ref #5)
5
Part #33720-MFE-305
Cover, license (Ref #6)
6
Part #33721-GET-671
Прокладка (Ref #7)
7
Part #33729-MCZ-003
Reflector, reflex (stanley) (Ref #8)
8
Part #33741-MS6-921
Bulb (12v21/5w) (Ref #9)
9
Part #34906-447-711
Rubber, taillight (Ref #10)
10
Part #80103-MFE-670
Moul, rr. (Ref #11)
11
Part #80104-MFE-670
Collar, rr. fender (Ref #13)
13
Part #80114-KG7-000
Plug, rr. cowl (Ref #14)
14
Part #80501-415-000
Washer, 6x20 (Ref #15)
15
Part #90401-373-770
Collar, rr. fender (Ref #16)
16
Part #90502-GG2-000
Rubber, control box (Ref #17)
17
Part #90852-898-000
Clip, 2x60 (Ref #18)
18
Part #91410-679-000
CLIP (Ref #19)
19
Part #91565-SEL-003
Болт (Ref #20)
20
Part #93901-24480
Screw, tap (4x30) (Ref #21)
21
Part #93901347G0
Гайка (Ref #22)
22
Part #94050-05000
Гайка (Ref #23)
23
Part #94050-06000
Шайба (Ref #24)
24
Part #94103-06000
BOLT (Ref #25)
25
Part #95701-060-140-0
Bolt, flange, 6x22 (Ref #26)
26
Part #95701-0602200
