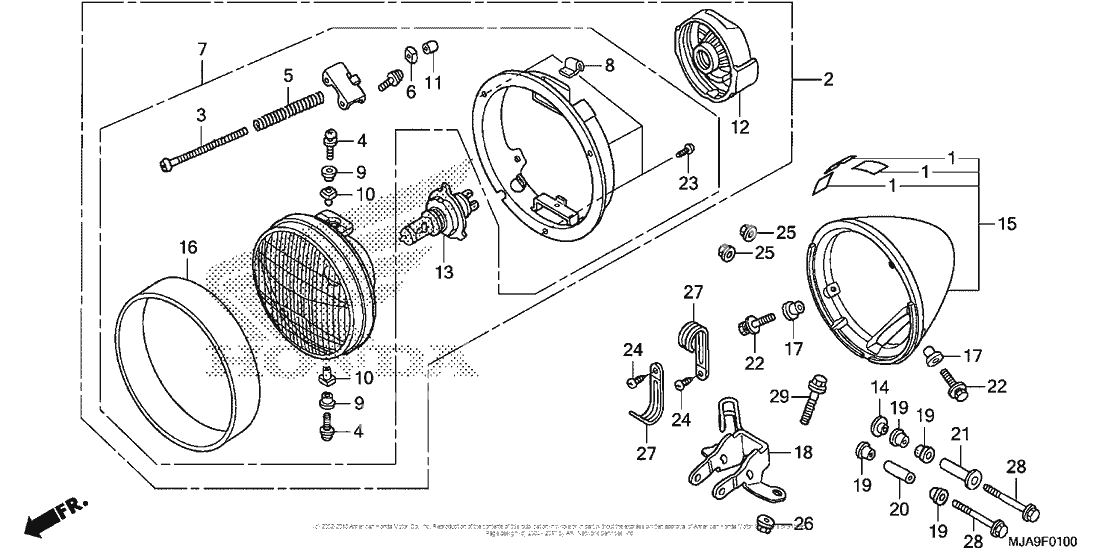

Headlight (1)
Headlight (1)
PROTECTOR (Ref #1)
1
Part #17518-MY9-690
Hdlt (12v 60/55w) (Ref #2)
2
Part #33100-MEG-305
Screw, beam adj. (Ref #3)
3
Part #33103-MM2-003
Screw-washer (Ref #4)
4
Part #33104-MAH-671
Spring, beam adj. (Ref #5)
5
Part #33108-MM2-003
Nut, beam adj. (Ref #6)
6
Part #33118-438-841
Блок освещения (Ref #7)
7
Part #33120-MEG-305
Tape, protector (Ref #8)
8
Part #33126-MEA-650
Кольцо/шайба (Ref #9)
9
Part #33127-MAA-A31
Nut, unit holder (Ref #10)
10
Part #33128-MAA-A31
Cover, screw (Ref #11)
11
Part #33136-426-830
Cover, rubber (Ref #12)
12
Part #33180-MR7-003
Bulb (12v 60/55w) (Ref #13)
13
Part #34901-MC7-602
Collar, chain guard (Ref #14)
14
Part #52157-GC5-000
Case set, headlight (Ref #15)
15
Part #61300-MEG-A40
Rim, headlight (Ref #16)
16
Part #61302-MEG-000
COLLAR (Ref #17)
17
Part #61304-292-000
Stay, headlight (Ref #18)
18
Part #61311-MEG-A40
RUBBER (Ref #19)
19
Part #61315-MR1-000
Colr, headlight stay (Ref #20)
20
Part #61316-MK7-000
Collar a (Ref #21)
21
Part #90501-MCF-000
Bolt-washer (5x20) (Ref #22)
22
Part #93402-0502000
Болт (Ref #23)
23
Part #93901-24310
Болт (Ref #24)
24
Part #93901-34310
ナット (Ref #25)
25
Part #94050-06070
Гайка (Ref #26)
26
Part #94050-08000
Clip (4x90) (Ref #27)
27
Part #9459149000
Болт (Ref #28)
28
Part #95701-0605507
BOLT (Ref #29)
29
Part #95801-080-450-7
