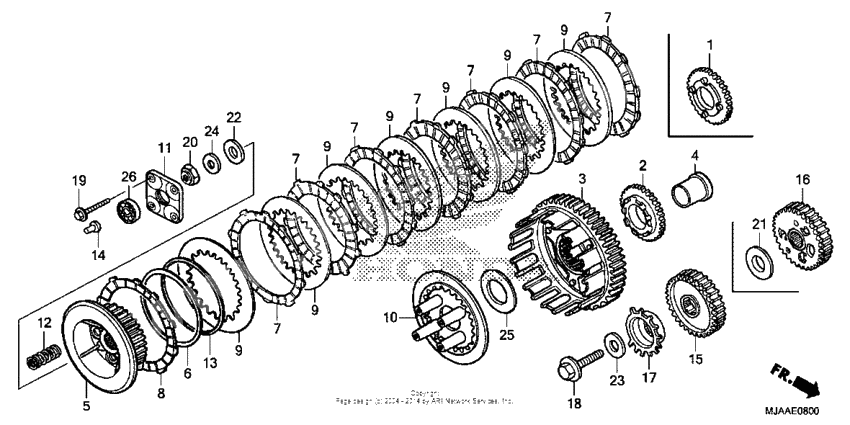

Сцепление
Сцепление
Звездочка (Ref #2)
2
Part #15131-MEW-921
Бендикс (Ref #3)
3
Part #22100-MBL-610
Colr, primary driven (Ref #4)
4
Part #22116-MF5-000
Center, clutch (24t) (Ref #5)
5
Part #22120-MBA-000
Seat, judder spring (Ref #6)
6
Part #22125-435-000
Disk b, cl friction (Ref #8)
8
Part #22202-MAE-000
Plate, clu press (Ref #10)
10
Part #22350-MS6-922
Plate, clutch lifter (Ref #11)
11
Part #22361-MR1-000
Пружина (Ref #12)
12
Part #22401-MEG-000
Spring, judder (Ref #13)
13
Part #22402-435-000
Rod, clutch lifter (Ref #14)
14
Part #22847-MZ8-H00
Шестерня (Ref #15)
15
Part #23103-MEG-010
Rotor, pulse (Ref #17)
17
Part #30211-MFE-640
Болт (Ref #18)
18
Part #90005-MN5-000
Bolt (6x30) (Ref #19)
19
Part #90007-MR1-000
Nut, lock (18mm) (Ref #20)
20
Part #90236-HA0-000
Шайба (Ref #22)
22
Part #90401-MZ8-B40
Шайба (Ref #23)
23
Part #90403-MEW-920
Шайба, стопорная (Ref #24)
24
Part #90432-428-000
Шайба (Ref #25)
25
Part #90452-471-000
Bearing, radial ball, 6001 (Ref #26)
26
Part #96100-6001000
