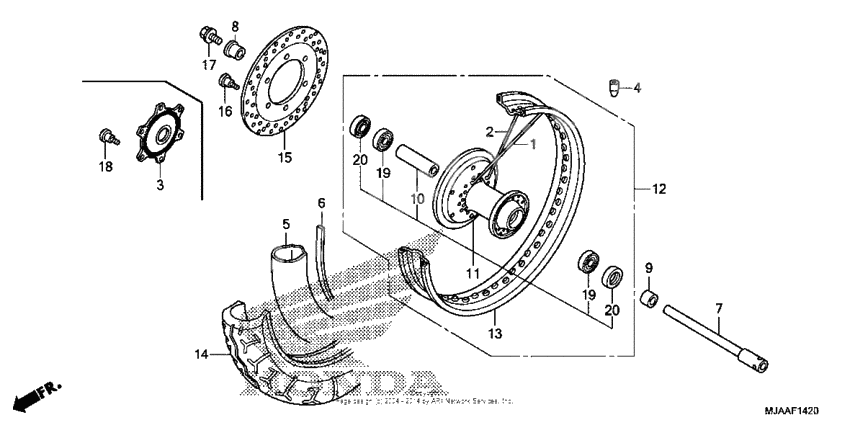

Front wheel (1)
Front wheel (1)
Spoke set a (Ref #1)
1
Part #06440-MFE-670
Spoke set b (Ref #2)
2
Part #06441-MFE-670
Грузик (Ref #4)
4
Part #42705-MEG-003
Грузик (Ref #4)
4
Part #42704-MEG-003
Tube (2.75/3.00-21) (Ref #5)
5
Part #44712-446-631
Tube, tire (Ref #5)
5
Part #44712-MBS-003
Заслонка (Ref #6)
6
Part #44713-400-004
Flap, tire (Ref #6)
6
Part #44713-MG7-003
Axle, fr. wheel (Ref #7)
7
Part #44301-MCK-G00
Collar, l. fr. (Ref #8)
8
Part #44312-MEG-640
Collar, l. fr. (Ref #9)
9
Part #44312-MFE-670
Collar, fr (Ref #10)
10
Part #44620-MBC-000
Hub sub-assy., fr. (Ref #11)
11
Part #44635-MEG-000
Wheel sub-assy., fr. (Ref #12)
12
Part #44650-MFE-305
Rim, fr. wheel (Ref #13)
13
Part #44701-MBS-013
Tire, fr. (Ref #14)
14
Part #44711-MFE-674
Tire, fr. (Ref #14)
14
Part #44711-MFE-673
Disk, fr. brake (Ref #15)
15
Part #45251-MFE-671
Bolt, disk (8x24) (Ref #16)
16
Part #90105-MV9-003
Bolt, fr. axle (Ref #17)
17
Part #90105-MBT-610
Bearing (6204) (Ref #19)
19
Part #91052-MBC-004
Bearing (6204) (Ref #19)
19
Part #91052-MBC-004
Bearing (6204) (Ref #19)
19
Part #91052-MBC-004
Bearing (6204) (Ref #19)
19
Part #91052-MBC-004
Oil seal (28x47.2x7) (Ref #20)
20
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #20)
20
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #20)
20
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #20)
20
Part #91252-MC4-013
