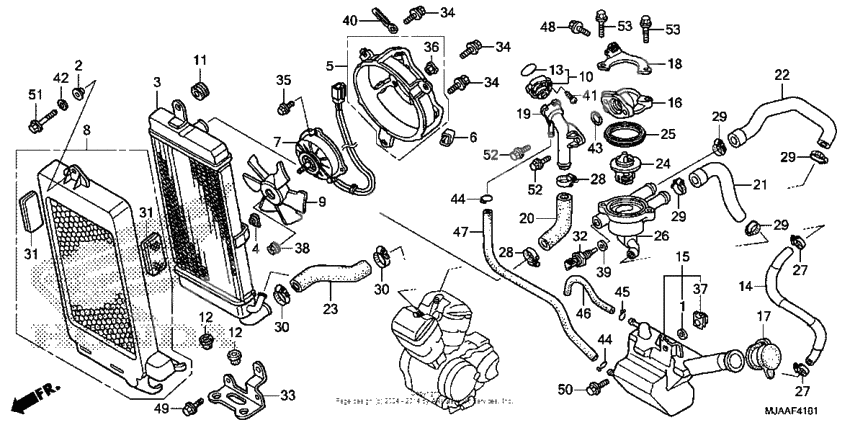

Radiator (2)
Radiator (2)
Collar, control (Ref #1)
1
Part #16573-ZE6-300
COLLAR (Ref #2)
2
Part #17216-HA7-670
Radiator comp(coo (Ref #3)
3
Part #19010-MGR-305
Nut, set (Ref #4)
4
Part #19014-KEA-003
SHROUD (Ref #5)
5
Part #19015-MBA-305
CLIP (Ref #6)
6
Part #19017-PK1-004
Motor assy., fan (Ref #7)
7
Part #19030-MGR-671
Grille, radiator (Ref #8)
8
Part #19035-MBA-671
Fan, cooling (Ref #9)
9
Part #19040-MF5-751
Крышка радиатора (Ref #10)
10
Part #19045-MY3-621
RUBBER (Ref #11)
11
Part #19051-KA3-710
RUBBER (Ref #12)
12
Part #19051-MB2-000
RUBBER (Ref #12)
12
Part #19051-MB2-000
RUBBER (Ref #12)
12
Part #19051-MB2-000
RUBBER (Ref #12)
12
Part #19051-MB2-000
Seal, radiator cap (Ref #13)
13
Part #19055-MV9-881
Hose, bypass (Ref #14)
14
Part #19071-MGR-670
Tank, reserve (Ref #15)
15
Part #19101-MBA-305
Cap, thermostat (Ref #16)
16
Part #19103-MGR-670
Cap, reserve tank (Ref #17)
17
Part #19104-MB0-700
STAY (Ref #18)
18
Part #19105-MGR-670
Neck, filler (Ref #19)
19
Part #19106-MM8-000
Hose, radiator (Ref #20)
20
Part #19107-MGR-670
Hose, fr. (Ref #21)
21
Part #19108-MGR-670
Hose, rr. (Ref #22)
22
Part #19110-MGR-670
Hose, radiator (Ref #23)
23
Part #19115-MBA-000
Thermostat assy. (Ref #24)
24
Part #19300-MCH-A00
Rubber, thermostat (Ref #25)
25
Part #19305-KV3-010
Case, thermostat (Ref #26)
26
Part #19310-MGR-670
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamper, water hose (Ref #28)
28
Part #19505-ML3-770
Clamper, water hose (Ref #28)
28
Part #19505-ML3-770
Clamper, water hose (Ref #28)
28
Part #19505-ML3-770
Clamper, water hose (Ref #28)
28
Part #19505-ML3-770
Clamp, radiator hose (Ref #30)
30
Part #19509-MM5-003
Clamp, radiator hose (Ref #30)
30
Part #19509-MM5-003
Clamp, radiator hose (Ref #30)
30
Part #19509-MM5-003
Clamp, radiator hose (Ref #30)
30
Part #19509-MM5-003
Reflector set, fr. (Ref #31)
31
Part #33745-MBA-670
Reflector set, fr. (Ref #31)
31
Part #33745-MBA-670
Reflector set, fr. (Ref #31)
31
Part #33745-MBA-670
Reflector set, fr. (Ref #31)
31
Part #33745-MBA-670
Sensor assy., water (Ref #32)
32
Part #37870-KRJ-901
Stay, radiator (Ref #33)
33
Part #50175-MBA-000
Bolt-washer (6x16) (Ref #34)
34
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #34)
34
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #34)
34
Part #90120-KCR-003
Bolt-washer (6x16) (Ref #34)
34
Part #90120-KCR-003
Болт (Ref #35)
35
Part #90196-MBB-003
Nut, special (5mm) (Ref #36)
36
Part #90303-MBB-003
Nut, special (5mm) (Ref #36)
36
Part #90303-MBB-003
Nut, special (5mm) (Ref #36)
36
Part #90303-MBB-003
Nut, special (5mm) (Ref #36)
36
Part #90303-MBB-003
Nut, clip (6mm) (Ref #37)
37
Part #90305-KT7-000
Nut, serrate (5mm) (Ref #38)
38
Part #90315-MK3-003
Шайба (Ref #39)
39
Part #90454-MC7-000
CLIP (Ref #40)
40
Part #91413-679-000
Болт (Ref #41)
41
Part #93901-22180
Шайба (Ref #42)
42
Part #94101-06700
Прокладка (Ref #43)
43
Part #9460830000
CLIP (Ref #44)
44
Part #95002-02120
CLIP (Ref #44)
44
Part #95002-02120
CLIP (Ref #44)
44
Part #95002-02120
CLIP (Ref #44)
44
Part #95002-02120
CLIP (Ref #45)
45
Part #95002-50000
Bulk hose (5x3000) (Ref #46)
46
Part #95005-500-0330M
Bulk hose (7.3x1000) (Ref #47)
47
Part #95005-750-0120M
BOLT (Ref #48)
48
Part #95701-060-120-0
Bolt, flange, 6x14 (Ref #49)
49
Part #95701-0601407
BOLT (Ref #50)
50
Part #95701-060-160-0
Bolt, flange, 6x30 (Ref #51)
51
Part #95701-0603007
BOLT (Ref #52)
52
Part #96001-060-140-0
BOLT (Ref #52)
52
Part #96001-060-140-0
BOLT (Ref #52)
52
Part #96001-060-140-0
BOLT (Ref #52)
52
Part #96001-060-140-0
BOLT (Ref #53)
53
Part #96001-060-200-0
BOLT (Ref #53)
53
Part #96001-060-200-0
BOLT (Ref #53)
53
Part #96001-060-200-0
BOLT (Ref #53)
53
Part #96001-060-200-0
-
-
