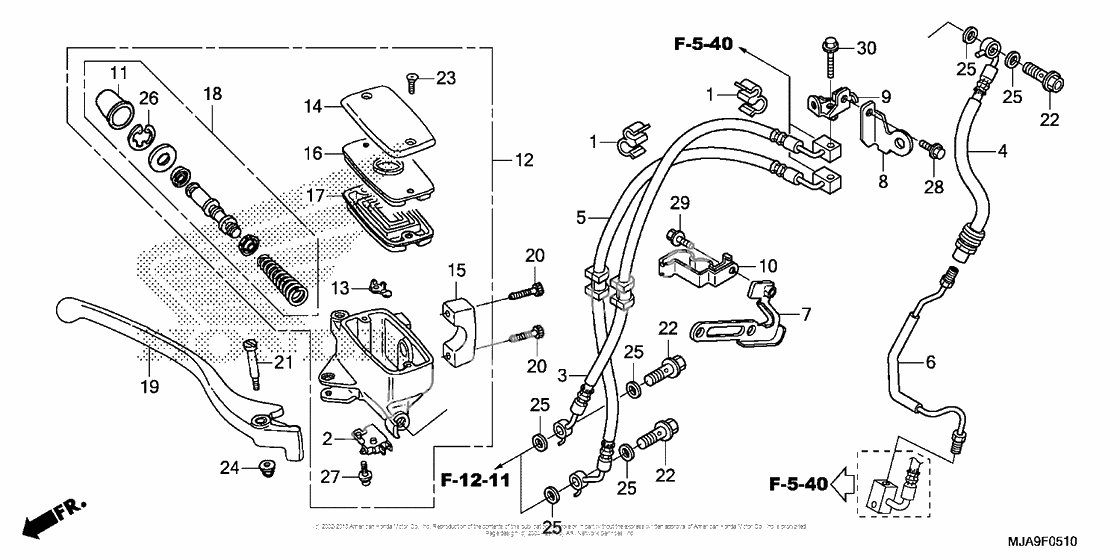

Front brake master cylinder (2)
Front brake master cylinder (2)
Clamp, pipe (Ref #1)
1
Part #11152-KS4-003
Switch, fr. stop (Ref #2)
2
Part #35340-MM5-601
Sub-hose, rr. brake (Ref #3)
3
Part #43316-MEG-H11
Hose a, fr. brake (Ref #4)
4
Part #45124-MEG-H11
Hose b, fr. brake (Ref #5)
5
Part #45127-MEG-H11
Pipe c, fr. brake (Ref #6)
6
Part #45128-MEG-H10
Bracket, r. fr. (Ref #7)
7
Part #45138-MEG-H10
Stay a, fr. (Ref #8)
8
Part #45155-MEG-H10
Stay b, fr. (Ref #9)
9
Part #45156-MEG-H10
Clamp, fr. (Ref #10)
10
Part #45357-MEG-H10
Ботинок (Ref #11)
11
Part #45504-410-003
Master cylinder set (Ref #12)
12
Part #45510-MEG-305
PROTECTOR (Ref #13)
13
Part #45512-MA6-006
Cap, master cylinder (Ref #14)
14
Part #45513-MM4-016
HOLDER (Ref #15)
15
Part #45517-MEG-006
Пластина (Ref #16)
16
Part #45518-MM5-006
DIAPHRAGM (Ref #17)
17
Part #45520-MM5-006
Master cylinder set (Ref #18)
18
Part #45530-MN9-305
Lever, r. handlebar (Ref #19)
19
Part #53175-MFR-305
Bolt, socket (6x22) (Ref #20)
20
Part #90101-MCL-000
Bolt, r (Ref #21)
21
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Screw, flat (4x12) (Ref #23)
23
Part #90158-MT7-000
Nut, cap, 6mm (Ref #24)
24
Part #90201-415-000
Шайба (Ref #25)
25
Part #90545-300-000
Circlip (Ref #26)
26
Part #90651-MA5-671
Screw-washer (Ref #27)
27
Part #93893-040-120-7
BOLT (Ref #28)
28
Part #96001-060-100-7
BOLT (Ref #29)
29
Part #96001-060-120-7
Болт (Ref #30)
30
Part #96001-0603207
