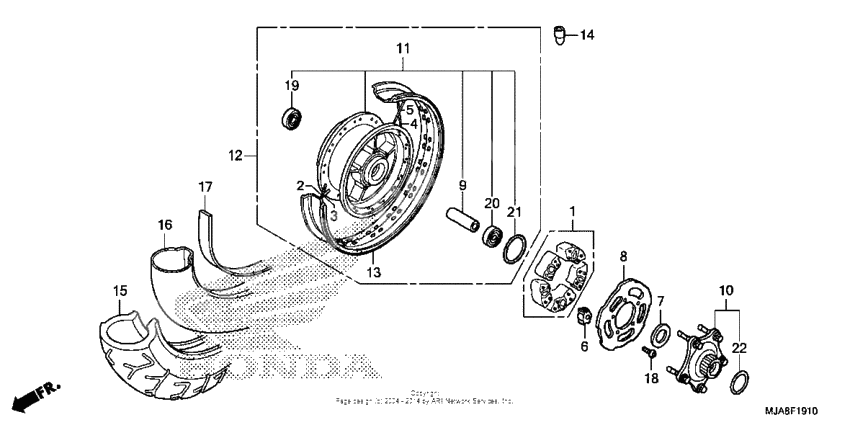

Rear wheel (1)
Rear wheel (1)
Damper set, wheel (Ref #1)
1
Part #06410-MAH-A60
Spoke set a, rr. (Ref #2)
2
Part #06420-MEG-000
Spoke set b, rr. (Ref #3)
3
Part #06421-MEG-000
Piece, damper wheel (Ref #6)
6
Part #41242-MR5-000
Шайба упорная (Ref #7)
7
Part #42616-MT3-000
Держатель демпфера (Ref #8)
8
Part #42617-MT8-000
Collar, rr. (Ref #9)
9
Part #42620-MEG-000
Кольцо (Ref #10)
10
Part #42630-MAH-305
Hub sub-assy., rr. (Ref #11)
11
Part #42635-MFE-610
Wheel set, rr. (Ref #12)
12
Part #42650-MEG-305
Rim, rr. wheel (Ref #13)
13
Part #42701-MEG-013
Грузик (Ref #14)
14
Part #42705-MEG-003
Грузик (Ref #14)
14
Part #42704-MEG-003
Tire (160/80-15) (Ref #15)
15
Part #42711-MEG-014
Tire (160/80-15) (Ref #15)
15
Part #42711-MCL-023
Tube, tire (Ref #16)
16
Part #42712-MEG-902
Tube, tire (Ref #16)
16
Part #42712-MEG-901
Заслонка (Ref #17)
17
Part #42713-MR1-671
Заслонка (Ref #17)
17
Part #42713-MR1-672
Bolt, disk (6x17) (Ref #18)
18
Part #90105-KN5-000
Bolt, disk (6x17) (Ref #18)
18
Part #90106-MT3-003
Bolt, disk (6x17) (Ref #18)
18
Part #90105-KV3-851
Bolt (6x17) (Ref #18)
18
Part #90106-MBB-000
Bearing (6204) (Ref #19)
19
Part #91052-MZ2-A21
Bearing (20x47x20.6) (Ref #20)
20
Part #91053-MN5-003
O-ring (61x2) (Ref #21)
21
Part #91302-MA6-003
Прокладка (Ref #22)
22
Part #91358-MB0-000
