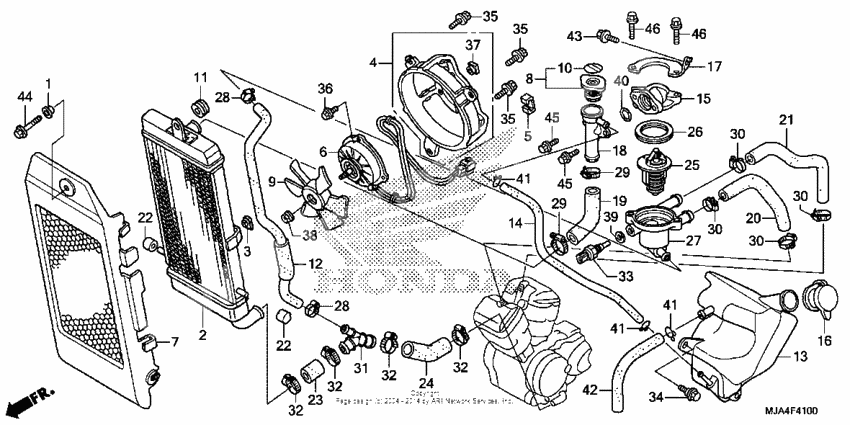

Radiator (1)
Radiator (1)
COLLAR (Ref #1)
1
Part #17216-HA7-670
Радиатор (Ref #2)
2
Part #19010-MFE-305
Nut, set (Ref #3)
3
Part #19014-KEA-003
SHROUD (Ref #4)
4
Part #19015-MBA-305
CLIP (Ref #5)
5
Part #19017-PK1-004
Motor assy,, fan (Ref #6)
6
Part #19030-MFE-641
Grille, radiator (Ref #7)
7
Part #19032-MEG-000
Стакан карбюратора (Ref #8)
8
Part #19037-GEE-710
Fan, cooling (Ref #9)
9
Part #19040-MF5-751
LABEL (Ref #10)
10
Part #19046-PAA-A00
RUBBER (Ref #11)
11
Part #19051-KA3-710
Hose, bypass (Ref #12)
12
Part #19071-MFE-640
Tank, reserve (Ref #13)
13
Part #19101-MEG-305
Hose, reservoir tank (Ref #14)
14
Part #19102-MEG-000
Cap, thermostat (Ref #15)
15
Part #19103-MBA-000
Cap, reserve tank (Ref #16)
16
Part #19104-MB0-700
STAY (Ref #17)
17
Part #19105-MFE-640
Neck, filler (Ref #18)
18
Part #19106-MFE-641
Hose,radiator upp (Ref #19)
19
Part #19107-MFE-640
Hose, fr, (Ref #20)
20
Part #19108-MFE-640
Hose, rr, (Ref #21)
21
Part #19110-MFE-640
Mount, radiator (Ref #22)
22
Part #19112-MF5-840
Mount, radiator (Ref #22)
22
Part #19112-MF5-840
Mount, radiator (Ref #22)
22
Part #19112-MF5-840
Mount, radiator (Ref #22)
22
Part #19112-MF5-840
Hose a, radiator (Ref #23)
23
Part #19115-MEG-A60
Hose b, radiator (Ref #24)
24
Part #19116-MEG-A60
Thermostat assy. (Ref #25)
25
Part #19300-MCH-A00
Rubber, thermostat (Ref #26)
26
Part #19305-KV3-010
Case, thermostat (Ref #27)
27
Part #19311-MFE-640
Clamp (25mm) (Ref #28)
28
Part #19504-KY1-003
Clamp (25mm) (Ref #28)
28
Part #19504-KY1-003
Clamp (25mm) (Ref #28)
28
Part #19504-KY1-003
Clamp (25mm) (Ref #28)
28
Part #19504-KY1-003
Clamper, water hose (Ref #29)
29
Part #19505-ML3-770
Clamper, water hose (Ref #29)
29
Part #19505-ML3-770
Clamper, water hose (Ref #29)
29
Part #19505-ML3-770
Clamper, water hose (Ref #29)
29
Part #19505-ML3-770
JOINT (Ref #31)
31
Part #19507-MFE-640
Sensor assy., water (Ref #33)
33
Part #37870-KRJ-901
BOLT (Ref #34)
34
Part #90111-162-000
Болт (Ref #36)
36
Part #90196-MBB-003
Nut, special (5mm) (Ref #37)
37
Part #90303-MBB-003
Nut, serrate (5mm) (Ref #38)
38
Part #90315-MK3-003
Шайба (Ref #39)
39
Part #90454-MC7-000
Прокладка (Ref #40)
40
Part #9460830000
Bulk hose (7x3000) (Ref #42)
42
Part #95005-700-0330M
BOLT (Ref #43)
43
Part #95701-060-120-0
Болт (Ref #44)
44
Part #95701-0602807
BOLT (Ref #45)
45
Part #96001-060-120-0
BOLT (Ref #45)
45
Part #96001-060-120-0
BOLT (Ref #45)
45
Part #96001-060-120-0
BOLT (Ref #45)
45
Part #96001-060-120-0
BOLT (Ref #46)
46
Part #96001-060-200-0
BOLT (Ref #46)
46
Part #96001-060-200-0
BOLT (Ref #46)
46
Part #96001-060-200-0
BOLT (Ref #46)
46
Part #96001-060-200-0
