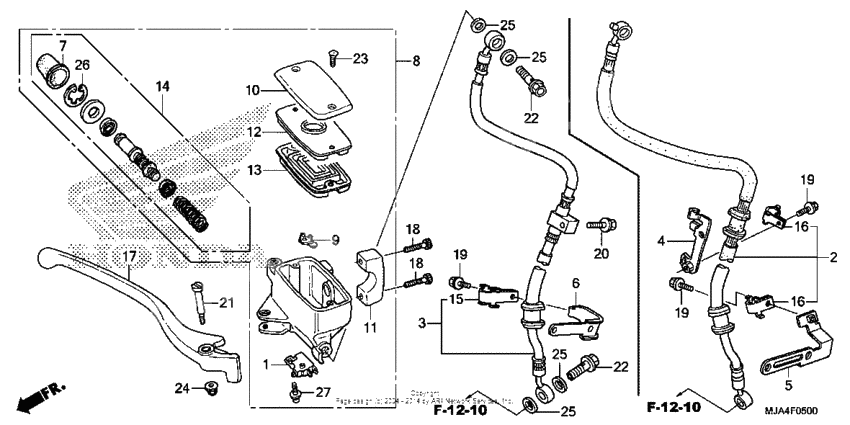

Front brake master cylinder (1)
Front brake master cylinder (1)
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose, fr. brake (Ref #3)
3
Part #45126-MFE-671
Bracket, r. fr. (Ref #6)
6
Part #45138-MFE-670
Ботинок (Ref #7)
7
Part #45504-410-003
Master cylinder set (Ref #8)
8
Part #45510-MEG-305
PROTECTOR (Ref #9)
9
Part #45512-MA6-006
Cap, master cylinder (Ref #10)
10
Part #45513-MM4-016
HOLDER (Ref #11)
11
Part #45517-MEG-006
Пластина (Ref #12)
12
Part #45518-MM5-006
DIAPHRAGM (Ref #13)
13
Part #45520-MM5-006
Master cylinder set (Ref #14)
14
Part #45530-MN9-305
Clamp a, brake hose (Ref #15)
15
Part #52115-MCA-A20
Lever, r. handlebar (Ref #17)
17
Part #53175-MR1-305
Bolt, socket (6x22) (Ref #18)
18
Part #90101-MCL-000
Bolt, socket (6x22) (Ref #18)
18
Part #90101-MCL-000
Bolt, socket (6x22) (Ref #18)
18
Part #90101-MCL-000
Bolt, socket (6x22) (Ref #18)
18
Part #90101-MCL-000
Болт (Ref #20)
20
Part #90106-MEJ-D00
Bolt, r (Ref #21)
21
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Screw, flat (4x12) (Ref #23)
23
Part #90158-MT7-000
Nut, cap, 6mm (Ref #24)
24
Part #90201-415-000
Circlip (Ref #26)
26
Part #90651-MA5-671
Screw-washer (Ref #27)
27
Part #93893-040-120-7
