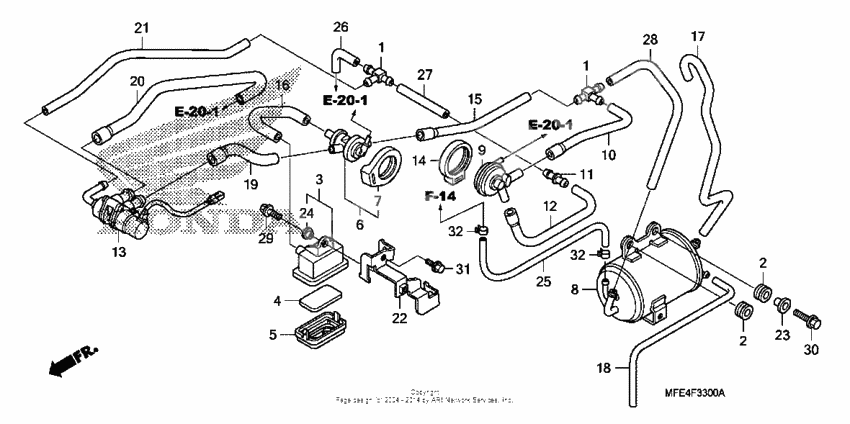

Canister
Canister
T-joint (Ref #1)
1
Part #17195-MN5-000
T-joint (Ref #1)
1
Part #17195-MN5-000
T-joint (Ref #1)
1
Part #17195-MN5-000
T-joint (Ref #1)
1
Part #17195-MN5-000
RUBBER (Ref #2)
2
Part #17245-107-010
RUBBER (Ref #2)
2
Part #17245-107-010
RUBBER (Ref #2)
2
Part #17245-107-010
RUBBER (Ref #2)
2
Part #17245-107-010
Case, sub a/clnr (Ref #3)
3
Part #17251-MN5-000
Filter, sub a/clnr (Ref #4)
4
Part #17254-KAZ-000
Cover, sub a/clnr (Ref #5)
5
Part #17256-KBH-000
Valve assy. (Ref #6)
6
Part #17300-MFE-771
Rubber, setting (Ref #7)
7
Part #17305-MJ4-771
Адсорбер с активированным углем (Ref #8)
8
Part #17410-MEG-770
Valve, purge control (Ref #9)
9
Part #17440-MEG-770
TUBE (Ref #10)
10
Part #17441-MFE-770
JOINT (Ref #11)
11
Part #17445-MFE-770
TUBE (Ref #12)
12
Part #17446-MFE-770
Valve, vent solenoid (Ref #13)
13
Part #17450-MFE-771
RUBBER (Ref #14)
14
Part #17451-ME5-760
TUBE (Ref #15)
15
Part #17460-MFE-770
TUBE (Ref #16)
16
Part #17462-MFE-770
Tube, air (Ref #17)
17
Part #17464-MEG-770
Tube, canister drain (Ref #18)
18
Part #17465-MEG-770
TUBE (Ref #19)
19
Part #17466-MFE-770
Tube a (Ref #20)
20
Part #17467-MFE-770
TUBE (Ref #21)
21
Part #17468-MFE-770
Stay b (Ref #22)
22
Part #50128-MFE-770
Collar, fr. fender (Ref #23)
23
Part #61104-428-010
Washer, chain case setting (Ref #24)
24
Part #90522-028-000
Tube, canister (Ref #25)
25
Part #17411-MFE-840
Tube (6.5x50) (Ref #26)
26
Part #95005-6505020
Tube (6.5x90) (Ref #27)
27
Part #95005-6509020
Bulk hose (7.3x1000) (Ref #28)
28
Part #95005-750-0120M
BOLT (Ref #29)
29
Part #95701-060-160-0
BOLT (Ref #30)
30
Part #95701-060-250-0
Bolt, flange, 6x10 (Ref #31)
31
Part #96001-060-100-0
Clamp, tube (d7.3) (Ref #32)
32
Part #95002-4073008
Clamp, tube (d7.3) (Ref #32)
32
Part #95002-4073008
Clamp, tube (d7.3) (Ref #32)
32
Part #95002-4073008
Clamp, tube (d7.3) (Ref #32)
32
Part #95002-4073008
-
2361104-428-000
Collar, fr. fender
1Replaced by 61104-428-010 Доступно: Нет в наличии
