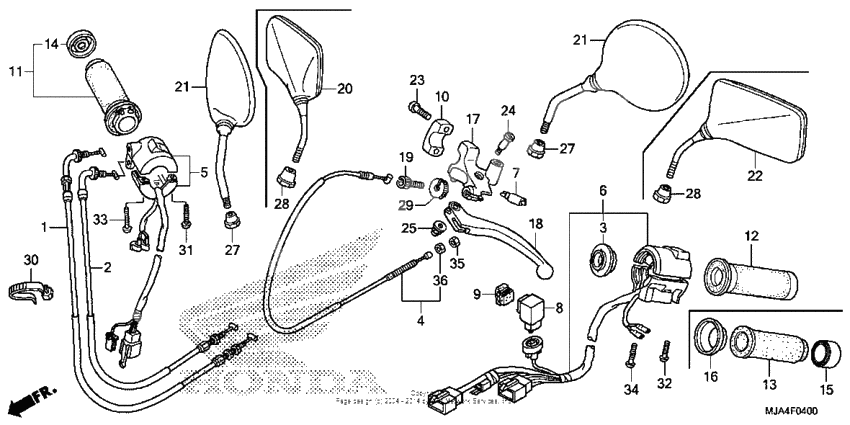

Handle lever + switch + cable
Handle lever + switch + cable
Cable a, throttle (Ref #1)
1
Part #17910-MGR-671
Cable b, throttle (Ref #2)
2
Part #17920-MGR-671
Адаптер (Ref #3)
3
Part #17962-MR1-000
Cable, clutch (Ref #4)
4
Part #22870-MGR-671
Switch assy (Ref #5)
5
Part #35130-MGR-671
Switch, turn signal (Ref #6)
6
Part #35200-MGR-671
Switch, fr. lever (Ref #7)
7
Part #35330-413-003
HOLDER (Ref #10)
10
Part #45517-MEG-006
Grip, r. handle (Ref #11)
11
Part #53145-MCL-305
Grip, l. handle (Ref #13)
13
Part #53166-MCL-305
Cap, r. grip end (Ref #14)
14
Part #53167-MCL-000
Cap, l. grip end (Ref #15)
15
Part #53168-MCL-300
Ring, grip (Ref #16)
16
Part #53170-MCL-300
Brkt, handle lever (Ref #17)
17
Part #53172-MEG-000
Lever, l. handlebar (Ref #18)
18
Part #53178-MFR-305
Bolt, cable adj. (Ref #19)
19
Part #53192-268-000
Mirror, l, back (Ref #20)
20
Part #88220-MFY-305
Bolt, socket (6x22) (Ref #23)
23
Part #90101-MCL-000
Болт (Ref #24)
24
Part #90113-438-000
Nut, cap, 6mm (Ref #25)
25
Part #90201-415-000
Nut, lock (Ref #28)
28
Part #90314-375-000
Nut, lock (Ref #28)
28
Part #90314-375-000
Nut, lock (Ref #28)
28
Part #90314-375-000
Nut, lock (Ref #28)
28
Part #90314-375-000
Nut, fixing (Ref #29)
29
Part #90321-MA6-750
Болт (Ref #31)
31
Part #93500-050-200-A
Screw, pan, 5x22 (Ref #32)
32
Part #93500-050220A
Болт (Ref #33)
33
Part #93500-050-250-A
Screw, pan, 5x32 (Ref #34)
34
Part #93500-050320A
Nut, hex. (8mm) (Ref #35)
35
Part #94002-080700S
Nut, hex. (8mm) (Ref #36)
36
Part #94030-08070
