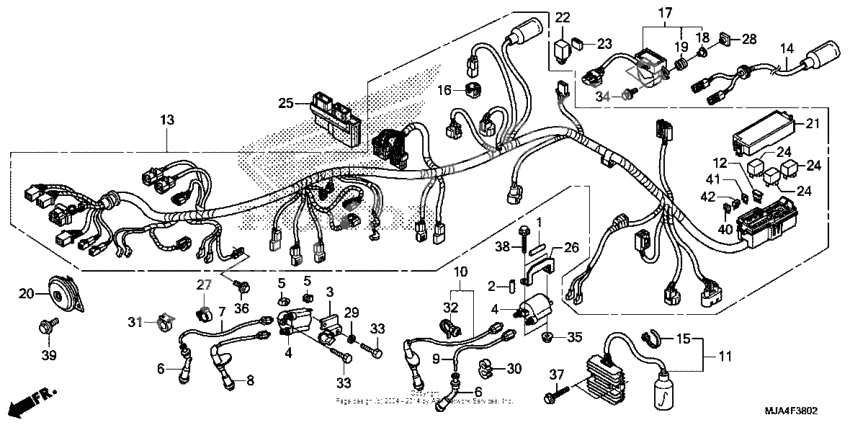

Wire harness (3)
Wire harness (3)
Trim, fuel tank (Ref #1)
1
Part #17516-HC0-000
Trim, fuel tank (Ref #2)
2
Part #17516-HC4-000
CLAMP (Ref #3)
3
Part #17541-MGR-670
Катушка зажигания (Ref #4)
4
Part #30510-MCC-003
Катушка зажигания (Ref #4)
4
Part #30510-MCC-003
Катушка зажигания (Ref #4)
4
Part #30510-MCC-003
Катушка зажигания (Ref #4)
4
Part #30510-MCC-003
Кольцо/шайба (Ref #5)
5
Part #30520-ML7-000
Кольцо/шайба (Ref #5)
5
Part #30520-ML7-000
Кольцо/шайба (Ref #5)
5
Part #30520-ML7-000
Кольцо/шайба (Ref #5)
5
Part #30520-ML7-000
Cap assy. (Ref #6)
6
Part #30700-KK6-153
Cap assy. (Ref #6)
6
Part #30700-KK6-153
Cap assy. (Ref #6)
6
Part #30700-KK6-153
Cap assy. (Ref #6)
6
Part #30700-KK6-153
Wire assy., r. fr. (Ref #7)
7
Part #30771-MGR-671
Wire assy., l. fr. (Ref #8)
8
Part #30772-MGR-671
Wire assy., l. rr. (Ref #9)
9
Part #30773-MGR-671
Wire assy., r. rr. (Ref #10)
10
Part #30774-MGR-671
Rectifier, regulator (Ref #11)
11
Part #31600-MGR-671
Diode assy., three way (sumitomo) (Ref #12)
12
Part #31730-MAS-601
Wire harness (Ref #13)
13
Part #32100-MGR-770
Sub-harness, rr. (Ref #14)
14
Part #32104-MGR-670
Band,wire harn (Ref #15)
15
Part #32161-GFL-J41
Cap, dummy (4p) (Ref #16)
16
Part #32606-GEV-761
Sensor, bank angle (Ref #17)
17
Part #35160-MGR-671
COLLAR (Ref #18)
18
Part #35162-MN5-003
GROMMET (Ref #19)
19
Part #35163-MN5-003
Horn (Ref #20)
20
Part #38110-KSV-J00
Cover (upper) (Ref #21)
21
Part #38252-MFJ-D01
Relay, turn signal (Ref #22)
22
Part #38301-MEG-000
Suspension, winker relay (mitsuba) (Ref #23)
23
Part #38306-KK4-000
Pgm-fi unit (Ref #25)
25
Part #38770-MGR-773
Plate, heat (Ref #26)
26
Part #50331-MGR-670
CLIP (Ref #27)
27
Part #53781-SE0-952
Nut special 4mm (Ref #28)
28
Part #90300-GC8-000
Шайба (Ref #29)
29
Part #90504-HW1-670
Clip, high tension cord (Ref #30)
30
Part #90658-ZA0-930
Clip, cable, 15mm (Ref #31)
31
Part #90690-GHB-651
CLIP (Ref #32)
32
Part #91541-S0A-003
Bolt, hex., 6x25 (Ref #33)
33
Part #92101-06025-4J
Bolt, hex., 6x25 (Ref #33)
33
Part #92101-06025-4J
Bolt, hex., 6x25 (Ref #33)
33
Part #92101-06025-4J
Bolt, hex., 6x25 (Ref #33)
33
Part #92101-06025-4J
Bolt-washer (4x25) (Ref #34)
34
Part #93404-040-250-8
ナット (Ref #35)
35
Part #94050-06070
Bolt, flange, 6x8 (Ref #36)
36
Part #95701-0600800
BOLT (Ref #37)
37
Part #95701-060-200-0
Болт (Ref #38)
38
Part #95701-0602807
Bolt, flange, 8x12 (Ref #39)
39
Part #95701-0801207
Fuse (Ref #40)
40
Part #98200-41000
Fuse (Ref #41)
41
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #42)
42
Part #98200-43000
