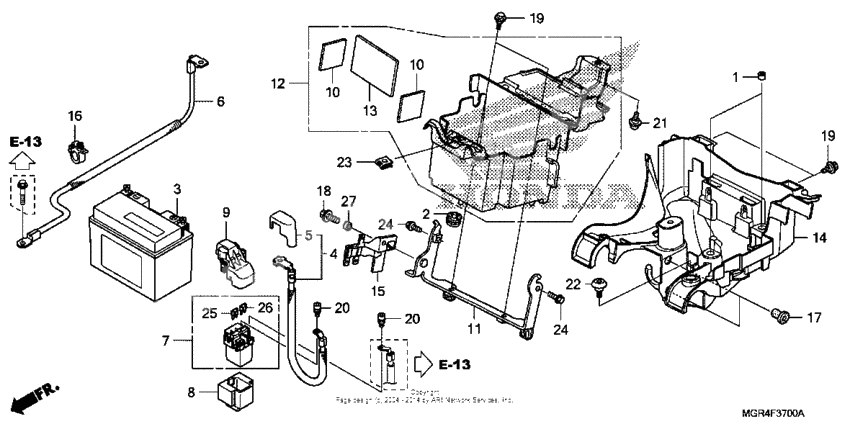

Battery
Battery
Collar, distance, 6.5x11x7.5 (Ref #1)
1
Part #17202-ZV5-310
Rubber, radiator mounting (Ref #2)
2
Part #19051-KA3-830
Аккумулятор (Ref #3)
3
Part #31500-MCR-D02AH
Cable (Ref #4)
4
Part #32401-MGR-670
COVER (Ref #5)
5
Part #32414-MCF-000
Cable (Ref #6)
6
Part #32601-MGR-670
Sw, starter magnetic (Ref #7)
7
Part #35850-MFL-003
RUBBER (Ref #8)
8
Part #35856-KBG-007
Cvr, magnetic switch (Ref #9)
9
Part #35857-MFN-D00
Sponge, rubber (Ref #10)
10
Part #50322-MEC-000
Sponge, rubber (Ref #10)
10
Part #50322-MEC-000
Sponge, rubber (Ref #10)
10
Part #50322-MEC-000
Sponge, rubber (Ref #10)
10
Part #50322-MEC-000
Stay, battery (Ref #11)
11
Part #50322-MGR-670
Box, battery (Ref #12)
12
Part #50325-MGR-670
Cushion, battery (Ref #13)
13
Part #50328-MFE-640
Box, battery (lower) (Ref #14)
14
Part #50330-MGR-670
Holder, connector (Ref #15)
15
Part #50335-MGR-670
CLIP (Ref #16)
16
Part #53781-SE0-952
BOLT (Ref #18)
18
Part #95701-060-140-8
Болт (Ref #19)
19
Part #90111-GJ5-000
Болт (Ref #19)
19
Part #90111-GJ5-000
Болт (Ref #19)
19
Part #90111-GJ5-000
Болт (Ref #19)
19
Part #90111-GJ5-000
Bolt, socket (5x9) (Ref #20)
20
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #20)
20
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #20)
20
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #20)
20
Part #90111-MR5-000
Screw, pan (5x13) (Ref #21)
21
Part #90117-MN5-000
Bolt, special (6mm) (Ref #22)
22
Part #90127-MCP-900
Nut, clip (5mm) (Ref #23)
23
Part #90677-KAN-961
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
Fuse (Ref #25)
25
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #26)
26
Part #98200-43000
Collar, body cover (Ref #27)
27
Part #90312-GF0-000
