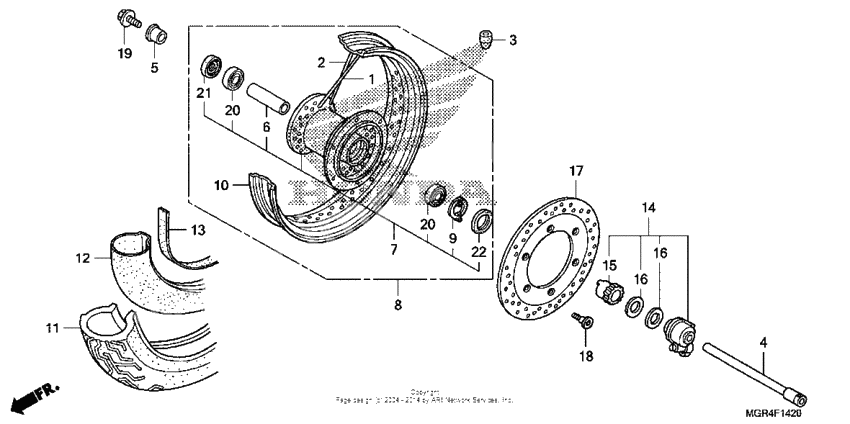

Front wheel
Front wheel
Spoke set a (Ref #1)
1
Part #06440-MGR-670
Spoke set b (Ref #2)
2
Part #06441-MGR-670
Грузик (Ref #3)
3
Part #42705-MEG-003
Грузик (Ref #3)
3
Part #42704-MEG-003
Axle, fr. wheel (Ref #4)
4
Part #44301-MCK-G00
Colr, fr. wheel side (Ref #5)
5
Part #44311-MGR-670
Collar, fr (Ref #6)
6
Part #44620-MBC-000
Hub sub-assy., fr. (Ref #7)
7
Part #44635-MBA-010
Wheel sub-assy., fr. (Ref #8)
8
Part #44650-MGR-670
Retainer, gear box (Ref #9)
9
Part #44680-ML7-000
Rim, fr. wheel (Ref #10)
10
Part #44701-MGR-671
Tire, fr. (Ref #11)
11
Part #44711-MGR-672
Tire, fr. (Ref #11)
11
Part #44711-MGR-671
Tube, tire (Ref #12)
12
Part #44712-MGR-672
Tube (3.25/3.50-19) (Ref #12)
12
Part #44712-300-004
Flap, tire (1.85-19) (Ref #13)
13
Part #44713-300-004
Band, Rim (Ref #13)
13
Part #44713-MGR-672
Box assy (Ref #14)
14
Part #44800-MR1-003
Gear, speedometer (Ref #15)
15
Part #44806-MR1-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Disk, fr. brake (Ref #17)
17
Part #45351-MGR-670
Bolt, disk (8x24) (Ref #18)
18
Part #90105-MV9-003
Bolt, fr. axle (Ref #19)
19
Part #90105-MBT-610
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Oil seal (28x47.2x7) (Ref #21)
21
Part #91252-MC4-013
Dust seal (45x55x5) (Ref #22)
22
Part #91258-ML7-003
