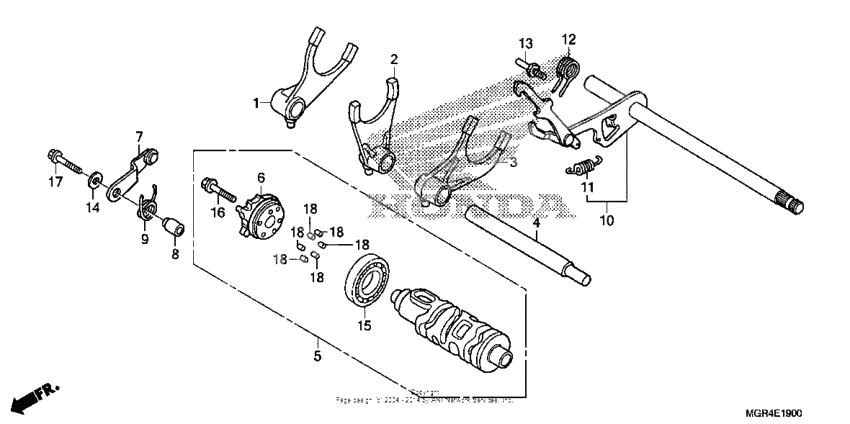

Gearshift drum
Gearshift drum
Fork, r. gearshift (Ref #1)
1
Part #24211-MBA-000
Вилка (Ref #2)
2
Part #24212-MBA-000
Fork, l. gearshift (Ref #3)
3
Part #24213-MBA-000
SHAFT (Ref #4)
4
Part #24241-MV1-000
Drum, gearshift (Ref #5)
5
Part #24300-MGR-670
Plate, cam (Ref #6)
6
Part #24320-MEW-920
STOPPER (Ref #7)
7
Part #24430-MF5-000
COLLAR (Ref #8)
8
Part #24432-413-000
Пружина (Ref #9)
9
Part #24435-MM9-000
Spindle, gearshift (Ref #10)
10
Part #24610-MGR-670
Пружина (Ref #11)
11
Part #24641-216-000
Пружина (Ref #12)
12
Part #24651-MB0-010
PIN (Ref #13)
13
Part #24652-259-000
Шайба (Ref #14)
14
Part #90488-MB0-000
Bearing (16005) (Ref #15)
15
Part #91008-374-003
Bolt, flange, 6x18 (Ref #16)
16
Part #95701-0601800
Bolt, flange, 6x28 (Ref #17)
17
Part #95801-0602800
