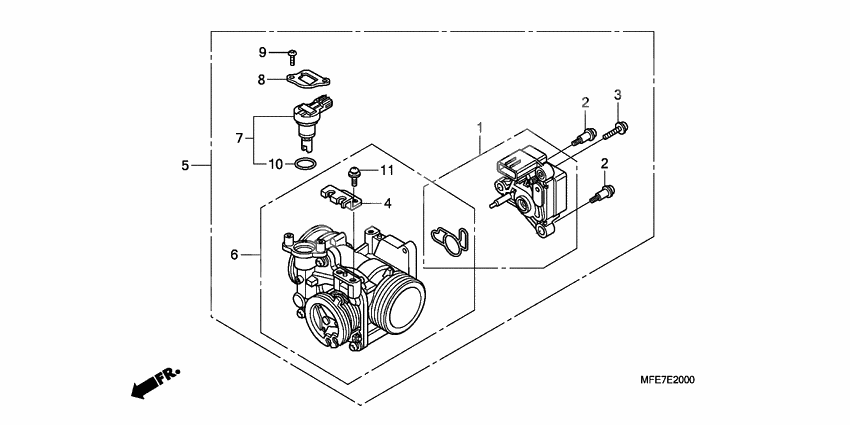

Throttle body
Throttle body
Sensor set (Ref #1)
1
Part #16060-MFE-641
Screw, torx (5x8.7) (Ref #2)
2
Part #16081-KPH-701
Screw, torx (5x8.7) (Ref #2)
2
Part #16081-KPH-701
Screw, torx (5x8.7) (Ref #2)
2
Part #16081-KPH-701
Screw, torx (5x8.7) (Ref #2)
2
Part #16081-KPH-701
Screw, torx (5x17) (Ref #3)
3
Part #16082-KPH-701
Stay, wire (Ref #4)
4
Part #16169-MFE-641
Блок управления дроссельной заслонкой (Ref #5)
5
Part #16400-MFE-641
Body set (Ref #6)
6
Part #16410-MFE-641
Комплект клапана (Ref #7)
7
Part #16430-MFE-641
PLATE (Ref #8)
8
Part #16432-MFE-641
Screw, torx (Ref #9)
9
Part #16433-HN8-A61
Прокладка (Ref #10)
10
Part #16435-HN8-A61
Screw-washer (Ref #11)
11
Part #93892-050-120-8
