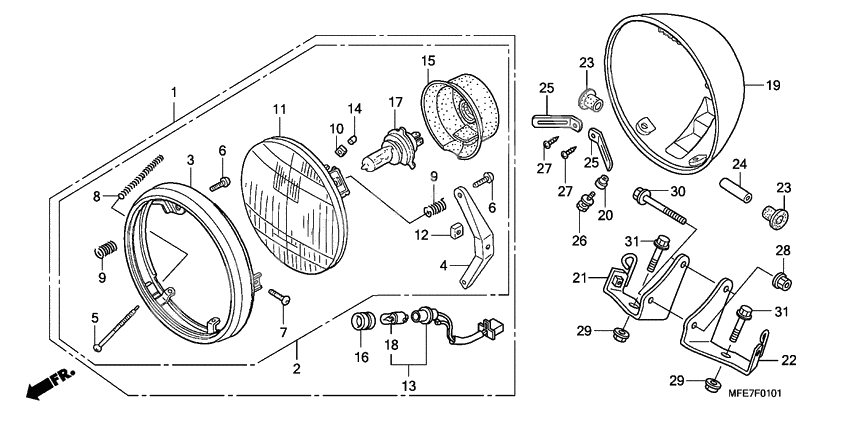

Phare ED,F,U
Phare ED,F,U
Hdlt (12v 60/55w) (Ref #2)
2
Part #33100-MK7-671
Rim, headlight (Ref #3)
3
Part #33101-MK7-671
STAY (Ref #4)
4
Part #33102-MK7-671
Screw, beam adj. (Ref #5)
5
Part #33103-MK7-671
Screw, special (Ref #6)
6
Part #33104-MK7-671
Screw, special (Ref #6)
6
Part #33104-MK7-671
Screw, special (Ref #6)
6
Part #33104-MK7-671
Screw, special (Ref #6)
6
Part #33104-MK7-671
Screw, special (Ref #7)
7
Part #33106-MK7-671
Пружина (Ref #8)
8
Part #33107-MK7-671
Spring, setting (Ref #9)
9
Part #33108-MK7-671
Spring, setting (Ref #9)
9
Part #33108-MK7-671
Spring, setting (Ref #9)
9
Part #33108-MK7-671
Spring, setting (Ref #9)
9
Part #33108-MK7-671
Nut, beam adjusting (Ref #10)
10
Part #33117-415-003
Блок освещения (Ref #11)
11
Part #33120-MK7-671
Nut, unit holder (Ref #12)
12
Part #33128-471-003
Cvr, adjusting screw (Ref #14)
14
Part #33136-111-671
Cover, rubber (Ref #15)
15
Part #33180-MJ0-010
Bulb (12v 60/55w) (Ref #17)
17
Part #34901-MC7-602
Case, headlight (Ref #19)
19
Part #61301-MN0-003
COLLAR (Ref #20)
20
Part #61304-KR3-980
Stay, r. headlight (Ref #21)
21
Part #61311-MFE-670
Stay, l. headlight (Ref #22)
22
Part #61312-MFE-670
RUBBER (Ref #23)
23
Part #61315-MK7-000
RUBBER (Ref #23)
23
Part #61315-MK7-000
RUBBER (Ref #23)
23
Part #61315-MK7-000
RUBBER (Ref #23)
23
Part #61315-MK7-000
Colr, headlight stay (Ref #24)
24
Part #61316-MK7-000
CLIP (Ref #25)
25
Part #91416-PA1-000
CLIP (Ref #25)
25
Part #91416-PA1-000
CLIP (Ref #25)
25
Part #91416-PA1-000
CLIP (Ref #25)
25
Part #91416-PA1-000
Bolt-washer (5x20) (Ref #26)
26
Part #93402-0502000
Болт (Ref #27)
27
Part #93913-24110
Болт (Ref #27)
27
Part #93913-24110
Болт (Ref #27)
27
Part #93913-24110
Болт (Ref #27)
27
Part #93913-24110
ナット (Ref #28)
28
Part #94050-06070
Гайка (Ref #29)
29
Part #94050-08000
Гайка (Ref #29)
29
Part #94050-08000
Гайка (Ref #29)
29
Part #94050-08000
Гайка (Ref #29)
29
Part #94050-08000
Bolt, flange, 6x50 (Ref #30)
30
Part #95701-0605007
Болт (Ref #31)
31
Part #95801-0804007
Болт (Ref #31)
31
Part #95801-0804007
Болт (Ref #31)
31
Part #95801-0804007
Болт (Ref #31)
31
Part #95801-0804007
