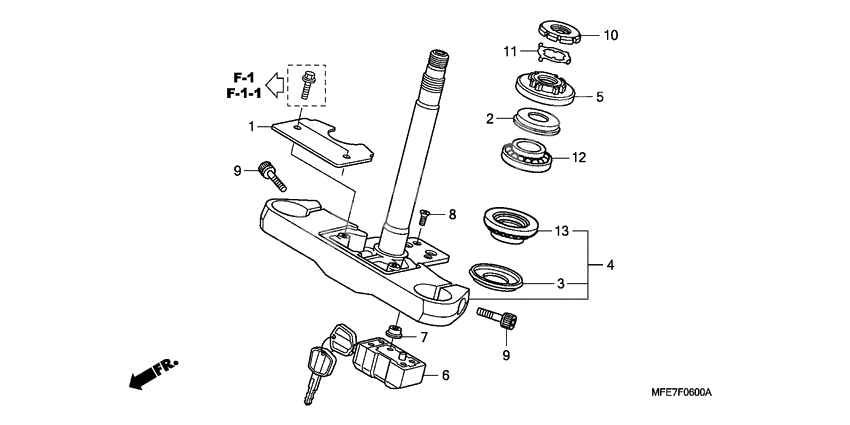

Steering stem
Steering stem
Cvr, bridge (lower) (Ref #1)
1
Part #53203-MFE-670
DUST SEAL (Ref #2)
2
Part #53213-MB4-771
DUST SEAL (Ref #3)
3
Part #53214-371-010
Stem sub assy. (Ref #4)
4
Part #53219-MFE-640
Thread (Ref #5)
5
Part #53220-422-000
Замок (Ref #6)
6
Part #53600-MEG-003
COLLAR (Ref #7)
7
Part #53610-MEG-000
Screw, flat (6x16) (Ref #8)
8
Part #90022-ME9-000
Bolt, socket (10x25) (Ref #9)
9
Part #90104-MEG-000
Bolt, socket (10x25) (Ref #9)
9
Part #90104-MEG-000
Bolt, socket (10x25) (Ref #9)
9
Part #90104-MEG-000
Bolt, socket (10x25) (Ref #9)
9
Part #90104-MEG-000
Thread (Ref #10)
10
Part #90302-425-830
Шайба, стопорная (Ref #11)
11
Part #90506-425-830
Bearing, head pipe (Ref #12)
12
Part #91015-KT8-005
Bearing, head pipe (Ref #13)
13
Part #91016-KT8-005
