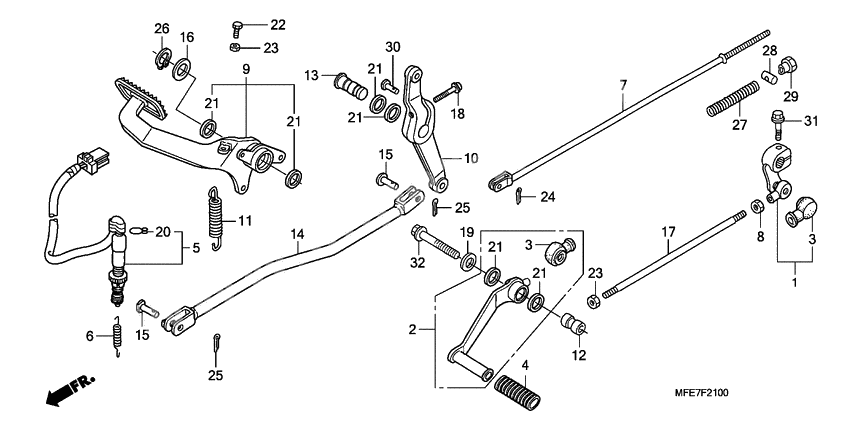

Brake pedal assy
Brake pedal assy
Arm, gearshift (Ref #1)
1
Part #24702-MEG-000
Pedal, gearshift (Ref #2)
2
Part #24710-MEG-305
Пыльник (Ref #3)
3
Part #24724-MBW-D21
Пыльник (Ref #3)
3
Part #24724-MBW-D21
Пыльник (Ref #3)
3
Part #24724-MBW-D21
Пыльник (Ref #3)
3
Part #24724-MBW-D21
RUBBER (Ref #4)
4
Part #24781-371-000
Switch, rr. stop (Ref #5)
5
Part #35350-MEG-010
Spring, stop switch (Ref #6)
6
Part #35357-KR3-670
Rod, rr. brake (Ref #7)
7
Part #43451-MEG-000
Гайка (Ref #8)
8
Part #45423-KA4-700
Pedal assy (Ref #9)
9
Part #46500-MEG-640
Arm, rr. (Ref #10)
10
Part #46511-MEG-000
Spring, brake pedal (Ref #11)
11
Part #46514-KZ9-000
Collar, rr. (Ref #12)
12
Part #46515-MM8-000
Shaft, rr. (Ref #13)
13
Part #46517-MEG-000
Rod, rr. (Ref #14)
14
Part #46540-MEG-000
PIN (Ref #15)
15
Part #46545-MBA-000
PIN (Ref #15)
15
Part #46545-MBA-000
PIN (Ref #15)
15
Part #46545-MBA-000
PIN (Ref #15)
15
Part #46545-MBA-000
Bush, washer (Ref #16)
16
Part #53312-657-000
Bolt, tie rod (Ref #17)
17
Part #90065-MEG-000
Bolt (8x32) (Ref #18)
18
Part #90133-MAT-000
Washer, 10.3mm (Ref #19)
19
Part #90521-427-770
Clip, switch cover (Ref #20)
20
Part #90601-KAF-003
BOLT (Ref #22)
22
Part #92101-06020-0A
Гайка (Ref #23)
23
Part #94002-060-000-S
Гайка (Ref #23)
23
Part #94002-060-000-S
Гайка (Ref #23)
23
Part #94002-060-000-S
Гайка (Ref #23)
23
Part #94002-060-000-S
PIN (Ref #24)
24
Part #94201-20120
PIN (Ref #25)
25
Part #94201-20150
PIN (Ref #25)
25
Part #94201-20150
PIN (Ref #25)
25
Part #94201-20150
PIN (Ref #25)
25
Part #94201-20150
Circlip, external, 15mm (Ref #26)
26
Part #9451115000
Spring a, brake rod (Ref #27)
27
Part #9501473100
Joint b, brake arm (Ref #28)
28
Part #9501532001
Nut b, brake rod adjusting (Ref #29)
29
Part #9501542000
Pin, joint (Ref #30)
30
Part #9501553000
BOLT (Ref #31)
31
Part #95701-060-200-0
Болт (Ref #32)
32
Part #95801-1005000
