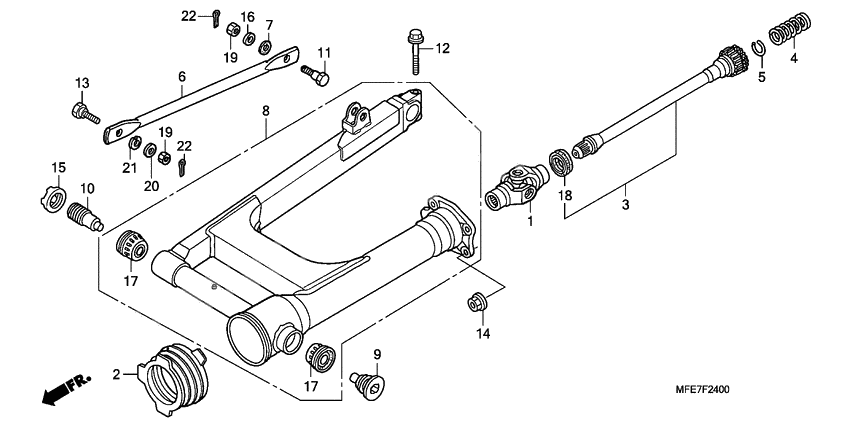

Swingarm
Swingarm
Joint, yoke (Ref #1)
1
Part #40200-MR6-671
Boot, joint (Ref #2)
2
Part #40207-MT3-610
Гребной вал (Ref #3)
3
Part #40210-MEG-000
Пружина (Ref #4)
4
Part #40215-ME9-003
Кольцо (Ref #5)
5
Part #40221-MB0-000
Arm, rr. (Ref #6)
6
Part #43431-MEG-640
Rubber, stopper arm (Ref #7)
7
Part #43434-ME1-670
Swingarm assy., rr. (Ref #8)
8
Part #52100-MFS-000
Bolt, r (Ref #9)
9
Part #90121-MAM-A60
Болт (Ref #10)
10
Part #90122-MAM-L40
Bolt, rr (Ref #11)
11
Part #90127-393-000
Болт (Ref #12)
12
Part #90129-KFG-000
Bolt, rr (Ref #13)
13
Part #90133-286-000
Nut, hex. (10mm) (Ref #14)
14
Part #90308-MEG-000
Nut, rr. (Ref #15)
15
Part #90355-469-000
Washer, 8mm (Ref #16)
16
Part #90505-425-000
Bearing (17x40x23.5) (Ref #17)
17
Part #91066-HA7-672
Bearing (17x40x23.5) (Ref #17)
17
Part #91066-HA7-672
Bearing (17x40x23.5) (Ref #17)
17
Part #91066-HA7-672
Bearing (17x40x23.5) (Ref #17)
17
Part #91066-HA7-672
Oil seal (27x43x7) (Ref #18)
18
Part #91261-ME9-005
Гайка (Ref #19)
19
Part #94001-080-000-S
Гайка (Ref #19)
19
Part #94001-080-000-S
Гайка (Ref #19)
19
Part #94001-080-000-S
Гайка (Ref #19)
19
Part #94001-080-000-S
Шайба (Ref #20)
20
Part #94101-08000
Шайба (Ref #21)
21
Part #94111-10000
PIN (Ref #22)
22
Part #9420120350
PIN (Ref #22)
22
Part #9420120350
PIN (Ref #22)
22
Part #9420120350
PIN (Ref #22)
22
Part #9420120350
-
852100-MEG-000
Swingarm assy., rr.
1Replaced by 52100-MFS-000 Доступно: Нет в наличии
