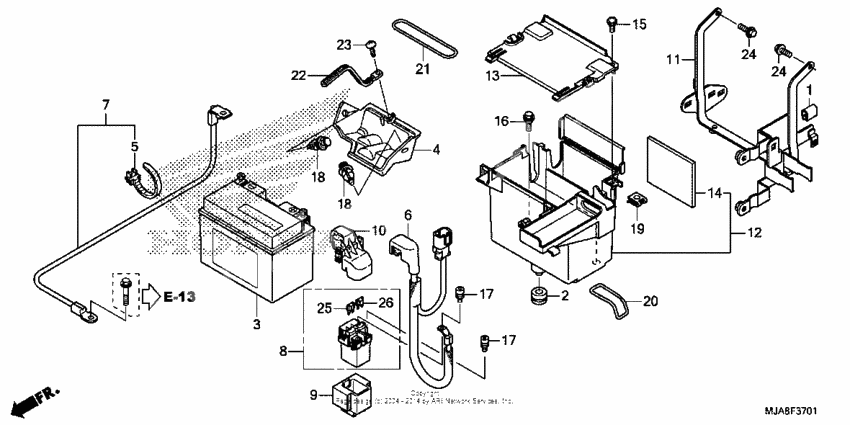

Battery (2)
Battery (2)
Trim, fuel tank (Ref #1)
1
Part #17516-HC4-000
Rubber, radiator mounting (Ref #2)
2
Part #19051-KA4-000
Аккумулятор (Ref #3)
3
Part #31500-MCR-D02AH
Holder, connector (Ref #4)
4
Part #32102-MEG-H10
Band,wire harn (Ref #5)
5
Part #32161-GFL-J41
Cable (Ref #6)
6
Part #32401-MEG-H11
Cable (Ref #7)
7
Part #32601-MEG-H10
Sw, starter magnetic (Ref #8)
8
Part #35850-MFL-003
RUBBER (Ref #9)
9
Part #35856-KBG-007
Cvr, magnetic switch (Ref #10)
10
Part #35857-MFN-D00
Holder, battery box (Ref #11)
11
Part #50322-MEG-H10
Box, battery (Ref #12)
12
Part #50325-MEG-H10
Cover, battery (Ref #13)
13
Part #50326-MEG-H10
Cushion, battery (Ref #14)
14
Part #50328-MFE-640
Screw, special, 5x12 (Ref #15)
15
Part #90105-MB1-000
Болт (Ref #16)
16
Part #90111-GJ5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
CLIP (Ref #18)
18
Part #90657-SB0-003
CLIP (Ref #18)
18
Part #90657-SB0-003
CLIP (Ref #18)
18
Part #90657-SB0-003
CLIP (Ref #18)
18
Part #90657-SB0-003
Nut, clip (5mm) (Ref #19)
19
Part #90677-GR1-003
Прокладка (Ref #20)
20
Part #91301-MCH-003
Прокладка (Ref #21)
21
Part #91311-MFE-640
CLIP (Ref #22)
22
Part #91413-679-000
Болт (Ref #23)
23
Part #93913-14180
BOLT (Ref #24)
24
Part #95701-060-140-0
BOLT (Ref #24)
24
Part #95701-060-140-0
BOLT (Ref #24)
24
Part #95701-060-140-0
BOLT (Ref #24)
24
Part #95701-060-140-0
Fuse (Ref #25)
25
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #26)
26
Part #98200-43000
