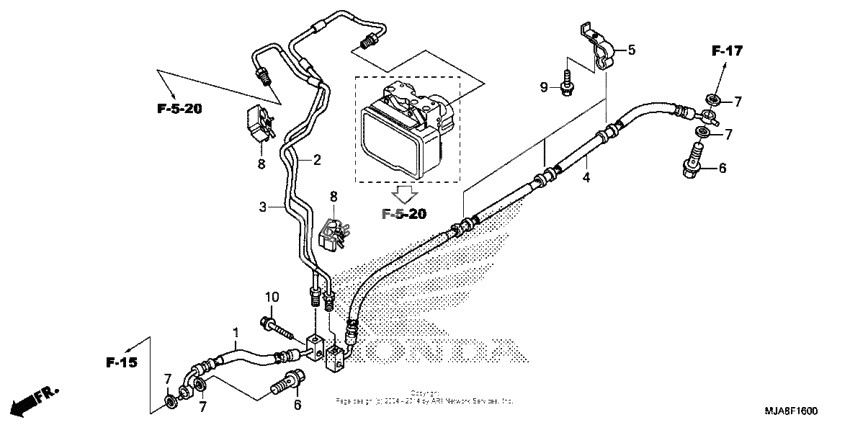

Rear brake hose
Rear brake hose
Hose a, rr. brake (Ref #1)
1
Part #43310-MEG-H11
Pipe a, rr. brake (Ref #2)
2
Part #43311-MEG-H10
Pipe c, rr. brake (Ref #3)
3
Part #43313-MEG-H10
Hose b, rr. brake (Ref #4)
4
Part #43314-MEG-H11
Clamp b, rr. (Ref #5)
5
Part #43356-MEG-H10
Bolt, oil (10x22) (Ref #6)
6
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #6)
6
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #6)
6
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #6)
6
Part #90145-MS9-612
Clamp (7.0x2) (Ref #8)
8
Part #90661-MEW-921
Clamp (7.0x2) (Ref #8)
8
Part #90661-MEW-921
Clamp (7.0x2) (Ref #8)
8
Part #90661-MEW-921
Clamp (7.0x2) (Ref #8)
8
Part #90661-MEW-921
Bolt, flange, 6x16 (Ref #9)
9
Part #96001-0601607
Болт (Ref #10)
10
Part #96001-0604007
