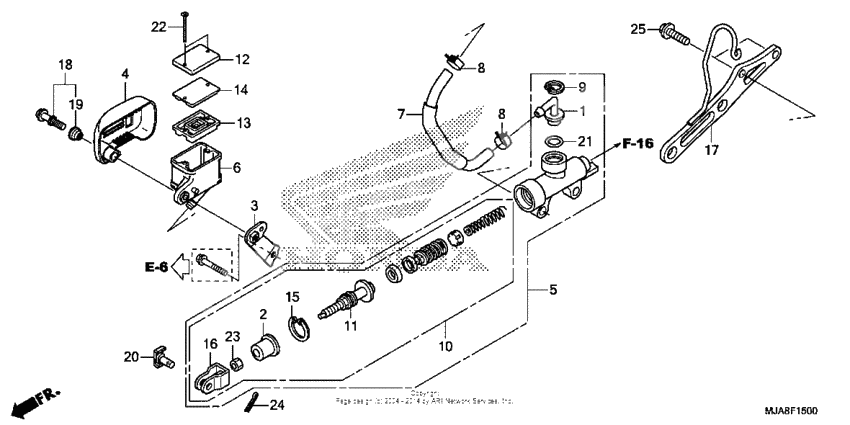

Rear brake master cylinder
Rear brake master cylinder
Коннектор (Ref #1)
1
Part #43503-KS6-701
Ботинок (Ref #2)
2
Part #43504-MB2-006
Stay, oil cup (Ref #3)
3
Part #43505-MEG-H10
Cover, oil cup (Ref #4)
4
Part #43506-MEG-H10
M/cyl sub-assy, rr. (Ref #5)
5
Part #43510-MJA-305
Cup, oil (Ref #6)
6
Part #43511-KV3-831
Hose, rr. (Ref #7)
7
Part #43512-MEG-H11
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #8)
8
Part #43514-KS6-701
Circlip, rr. (Ref #9)
9
Part #43517-KS6-701
Piston set, rr. (Ref #10)
10
Part #43520-MEG-H11
Штанга (Ref #11)
11
Part #43530-MW0-006
Cap, master cylinder (Ref #12)
12
Part #45513-HR0-305
DIAPHRAGM (Ref #13)
13
Part #45520-MG7-006
Пластина (Ref #14)
14
Part #45521-HA2-006
Circlip (Ref #15)
15
Part #46182-MEL-D21
Joint, brake rod (Ref #16)
16
Part #46504-MAH-671
Bracket, rr. (Ref #17)
17
Part #50616-MEG-H10
Bolt assy. (6x26.6) (Ref #18)
18
Part #90110-MEG-H10
Rubber, mounting (Ref #19)
19
Part #90543-MBA-000
Pin, joint (Ref #20)
20
Part #90751-MEH-000
Прокладка (Ref #21)
21
Part #91212-422-006
Screw, flat (4x40) (Ref #22)
22
Part #93600-040401G
Гайка (Ref #23)
23
Part #94002-080-000-S
PIN (Ref #24)
24
Part #94201-20150
BOLT (Ref #25)
25
Part #95701-060-200-0
