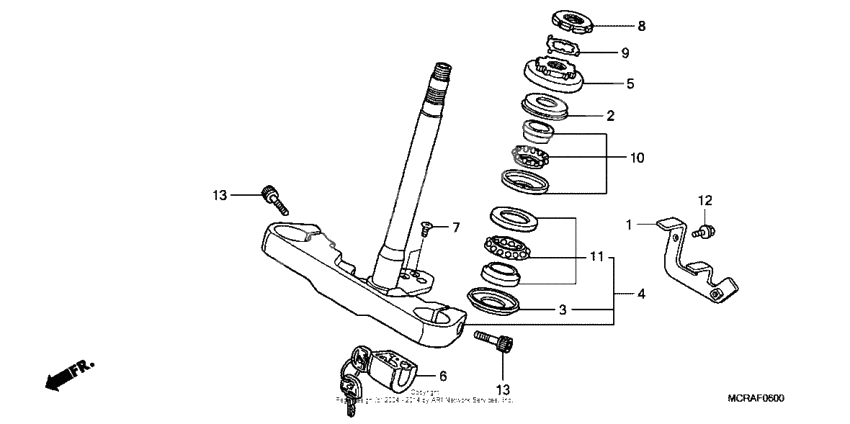

Steering stem
Steering stem
Clamp, fr. (Ref #1)
1
Part #45130-MCL-000
DUST SEAL (Ref #2)
2
Part #53213-MB4-771
DUST SEAL (Ref #3)
3
Part #53214-371-010
Stem sub-assy., strg (Ref #4)
4
Part #53219-MCR-A20
Thread (Ref #5)
5
Part #53220-422-000
Lock, handlebar (Ref #6)
6
Part #53600-GCN-003
Screw (6x12) (Ref #7)
7
Part #90164-028-000
Thread (Ref #8)
8
Part #90302-425-830
Шайба, стопорная (Ref #9)
9
Part #90506-425-830
Bearing, head pipe (Ref #10)
10
Part #91015-KT8-005
Bearing, head pipe (Ref #11)
11
Part #91016-KT8-005
BOLT (Ref #12)
12
Part #96001-060-120-7
Bolt, socket (10x25) (Ref #13)
13
Part #96700-1002510
Bolt, socket (10x25) (Ref #13)
13
Part #96700-1002510
Bolt, socket (10x25) (Ref #13)
13
Part #96700-1002510
Bolt, socket (10x25) (Ref #13)
13
Part #96700-1002510
