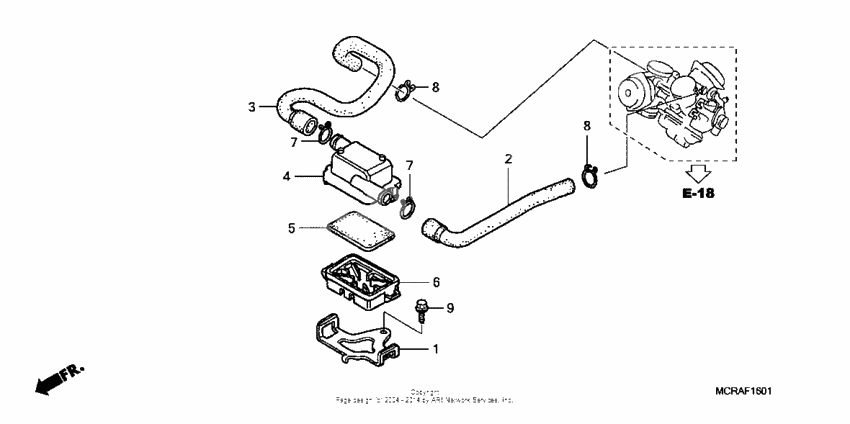

Sub air cleaner
Sub air cleaner
Stay, sub a/clnr (Ref #1)
1
Part #17243-MCL-000
Tube, fr. sub a/clnr (Ref #2)
2
Part #17244-MCL-000
Tube, rr. sub a/clnr (Ref #3)
3
Part #17245-MCL-000
Case, sub a/clnr (Ref #4)
4
Part #17256-MAH-610
Filter, sub a/clnr (Ref #5)
5
Part #17258-MAH-610
Cover, sub a/clnr (Ref #6)
6
Part #17259-MAA-A00
Clip, breather tube (Ref #7)
7
Part #17316-611-000
Clip, breather tube (Ref #7)
7
Part #17316-611-000
Clip, breather tube (Ref #7)
7
Part #17316-611-000
Clip, breather tube (Ref #7)
7
Part #17316-611-000
Clip, tube (b16) (Ref #8)
8
Part #90643-MK3-781
Clip, tube (b16) (Ref #8)
8
Part #90643-MK3-781
Clip, tube (b16) (Ref #8)
8
Part #90643-MK3-781
Clip, tube (b16) (Ref #8)
8
Part #90643-MK3-781
BOLT (Ref #9)
9
Part #95701-060-120-0
