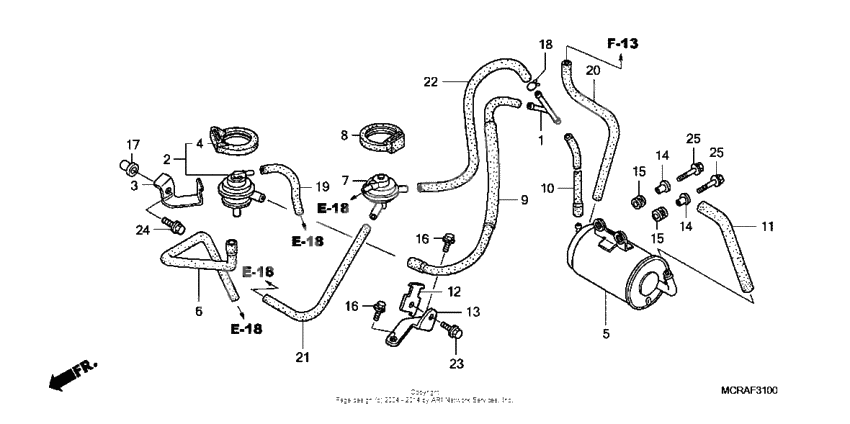

Evap canister
Evap canister
Joint, fuel tube (Ref #1)
1
Part #16959-MY1-000
Valve assy. (Ref #2)
2
Part #17300-MBA-771
STAY (Ref #3)
3
Part #17301-MBA-770
Rubber, setting (Ref #4)
4
Part #17305-MJ4-771
Адсорбер с активированным углем (Ref #5)
5
Part #17410-MBA-772
TUBE (Ref #6)
6
Part #17416-MBA-770
Valve, purge control (Ref #7)
7
Part #17440-MCR-L00
RUBBER (Ref #8)
8
Part #17451-ME5-760
TUBE (Ref #9)
9
Part #17461-MCR-L00
Tube, canister (Ref #10)
10
Part #17462-MBA-770
Tube, air (Ref #11)
11
Part #17463-MBA-770
Stay a (Ref #12)
12
Part #17465-MCR-L00
Stay b (Ref #13)
13
Part #17466-MCR-L00
Collar, setting (Ref #14)
14
Part #61104-422-000
Collar, setting (Ref #14)
14
Part #61104-422-000
Collar, setting (Ref #14)
14
Part #61104-422-000
Collar, setting (Ref #14)
14
Part #61104-422-000
RUBBER (Ref #15)
15
Part #61304-415-000
RUBBER (Ref #15)
15
Part #61304-415-000
RUBBER (Ref #15)
15
Part #61304-415-000
RUBBER (Ref #15)
15
Part #61304-415-000
Bolt, flange, 5x12 (Ref #16)
16
Part #90003-892-000
Bolt, flange, 5x12 (Ref #16)
16
Part #90003-892-000
Bolt, flange, 5x12 (Ref #16)
16
Part #90003-892-000
Bolt, flange, 5x12 (Ref #16)
16
Part #90003-892-000
Гайка (6мм) (Ref #17)
17
Part #90114-KAS-900
CLIP (Ref #18)
18
Part #95002-02120
Bulk hose (3.5x1000) (Ref #19)
19
Part #95005-350-0120M
Bulk hose (8x1000) (Ref #21)
21
Part #95005-800-0120M
BOLT (Ref #23)
23
Part #95701-060-100-0
Bolt, flange, 6x18 (Ref #24)
24
Part #95701-0601800
BOLT (Ref #25)
25
Part #95701-060-250-0
BOLT (Ref #25)
25
Part #95701-060-250-0
BOLT (Ref #25)
25
Part #95701-060-250-0
BOLT (Ref #25)
25
Part #95701-060-250-0
