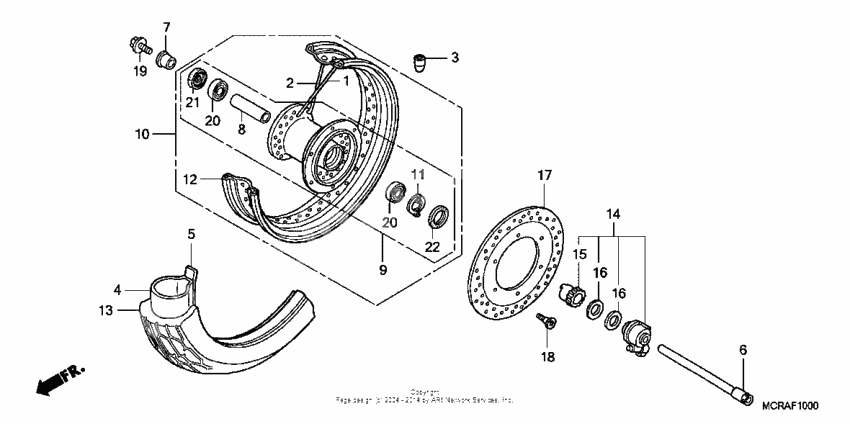

Front wheel
Front wheel
Spoke set a, fr. (Ref #1)
1
Part #06440-MCL-000
Spoke set b, fr. (Ref #2)
2
Part #06441-MCL-000
Грузик (Ref #3)
3
Part #42705-MEG-003
Грузик (Ref #3)
3
Part #42704-MEG-003
Tube (100/90-19) (Ref #4)
4
Part #44712-MR6-671
Band, tire rim (Ref #5)
5
Part #42713-KZ3-611
Заслонка (Ref #5)
5
Part #44713-MR1-671
Axle, fr. wheel (Ref #6)
6
Part #44301-MAH-671
Colr, fr. wheel side (Ref #7)
7
Part #44311-MM8-000
Collar, fr (Ref #8)
8
Part #44620-MBC-000
Hub sub-assy., fr. (Ref #9)
9
Part #44635-MBA-010
Wheel sub-assy., fr. (Ref #10)
10
Part #44650-MCL-020
Retainer, gear box (Ref #11)
11
Part #44680-ML7-000
Rim, fr. (2.15x19) (Ref #12)
12
Part #44701-MCL-013
Tire (110/80-19) (Ref #13)
13
Part #44711-MCR-A43
Tire (110/80-19) (Ref #13)
13
Part #44711-MCL-024
Box assy (Ref #14)
14
Part #44800-MR1-003
Gear, speedometer (Ref #15)
15
Part #44806-MR1-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Шайба (Ref #16)
16
Part #44809-ML7-003
Disk, fr. brake (Ref #17)
17
Part #45351-MGR-670
Bolt, disk (8x24) (Ref #18)
18
Part #90105-MV9-003
Bolt, fr. axle (Ref #19)
19
Part #90305-ML7-000
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Bearing (6204) (Ref #20)
20
Part #91052-MBC-004
Oil seal (28x47.2x7) (Ref #21)
21
Part #91252-MC4-013
Dust seal (45x55x5) (Ref #22)
22
Part #91258-ML7-003
