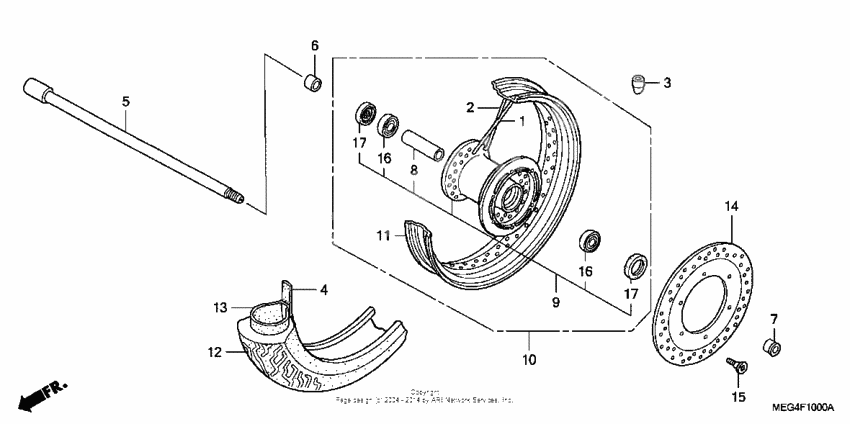

Front wheel
Front wheel
Spoke set a (Ref #1)
1
Part #06440-MEG-000
Spoke set b (Ref #2)
2
Part #06441-MEG-000
Грузик (Ref #3)
3
Part #42705-MEG-003
Грузик (Ref #3)
3
Part #42704-MEG-003
Flap, tire (Ref #4)
4
Part #44713-MAV-004
Flap, tire (Ref #4)
4
Part #42713-MY1-003
Flap, tire (Ref #4)
4
Part #44713-MEG-007
Axle, fr. wheel (Ref #5)
5
Part #44301-MEG-670
Collar, r. fr. (Ref #6)
6
Part #44311-MEG-670
Collar, l. fr. (Ref #7)
7
Part #44312-MEG-670
Collar, fr (Ref #8)
8
Part #44620-MBC-000
Hub sub-assy., fr. (Ref #9)
9
Part #44635-MEG-000
Wheel set, fr. (Ref #10)
10
Part #44650-MEG-305
Rim, fr. wheel (Ref #11)
11
Part #44701-MBA-023
Tire (120/90-17) (Ref #12)
12
Part #44711-MEG-A41
Tire (120/90-17) (Ref #12)
12
Part #44711-MEG-A42
Tube, tire (120/90-17) (bs) (Ref #13)
13
Part #42712-MN9-003
Tube, tire (5.10-17) (Ref #13)
13
Part #42712-MA0-005
Disk, fr. brake (Ref #14)
14
Part #45351-MGR-670
Bolt, disk (8x24) (Ref #15)
15
Part #90105-MV9-003
Bearing (6204) (Ref #16)
16
Part #91052-MBC-004
Bearing (6204) (Ref #16)
16
Part #91052-MBC-004
Bearing (6204) (Ref #16)
16
Part #91052-MBC-004
Bearing (6204) (Ref #16)
16
Part #91052-MBC-004
Oil seal (28x47.2x7) (Ref #17)
17
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #17)
17
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #17)
17
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #17)
17
Part #91252-MC4-013
