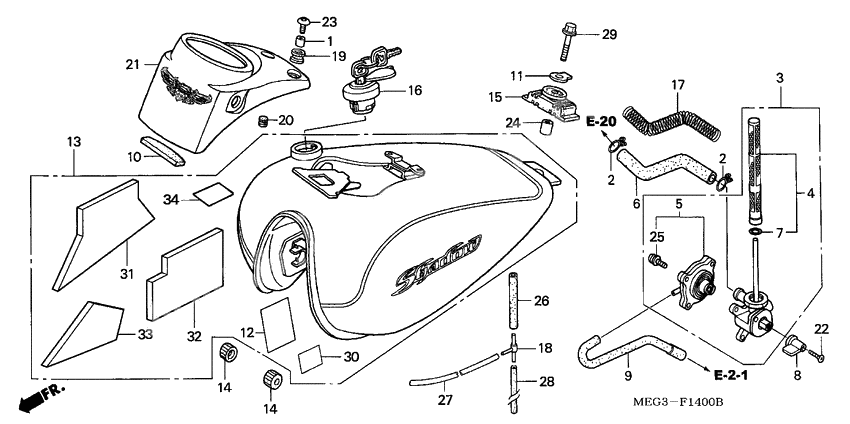

Tank fuel
Tank fuel
COLLAR (Ref #1)
1
Part #11346-371-300
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Кран топливный (Ref #3)
3
Part #16950-MEG-B02
Screen set (Ref #4)
4
Part #16952-MEG-003
Cover set, petcock (Ref #5)
5
Part #16953-KEA-023
Tube, fuel (Ref #6)
6
Part #16955-MEG-000
Прокладка (Ref #7)
7
Part #16958-KM9-005
Lever, petcock (Ref #8)
8
Part #16963-KEA-000
Tube, auto petcock (Ref #9)
9
Part #16981-MEG-000
Резина (Ref #10)
10
Part #17511-KGB-610
PLATE (Ref #11)
11
Part #17511-MEG-000
Tape, tank protector (Ref #12)
12
Part #17515-MEG-300
Комплект бака (Ref #13)
13
Part #17520-MEG-D20ZB
Cushion, fr (Ref #14)
14
Part #17611-MEG-000
Cushion, fr (Ref #14)
14
Part #17611-MEG-000
Cushion, fr (Ref #14)
14
Part #17611-MEG-000
Cushion, fr (Ref #14)
14
Part #17611-MEG-000
Rubber, rr (Ref #15)
15
Part #17613-KY1-000
Cap comp. (Ref #16)
16
Part #17620-MEG-003
Wire, guard (Ref #17)
17
Part #17672-MEG-000
Joint three-way (Ref #18)
18
Part #17711-GM6-000
Rubber, protector packing (Ref #19)
19
Part #18293-GN2-000
Plug, hole (Ref #20)
20
Part #61110-388-000
Cover, meter (Ref #21)
21
Part #83510-MCL-010
Screw, oval (5x12) (Ref #22)
22
Part #90111-MZ5-000
Bolt, special (6x14) (Ref #23)
23
Part #90118-MCL-000
Collar (8x20) (Ref #24)
24
Part #90513-MAT-000
Screw,washer 4x12 (Ref #25)
25
Part #93892-040-160-8
TUBE (Ref #26)
26
Part #95005-451-502-0
Tube,4.5x600 (Ref #27)
27
Part #95005-456-002-0
Tube,7.3x500 (Ref #28)
28
Part #95005-755-002-0
BOLT (Ref #29)
29
Part #95701-080-350-0
Tape, tank guard (Ref #30)
30
Part #17528-MR4-900
Tape b, tank guard (Ref #34)
34
Part #17528-KCZ-930
-
516953-KEA-000
Cover set, petcock
1Replaced by 16953-KEA-023 Доступно: Нет в наличии
